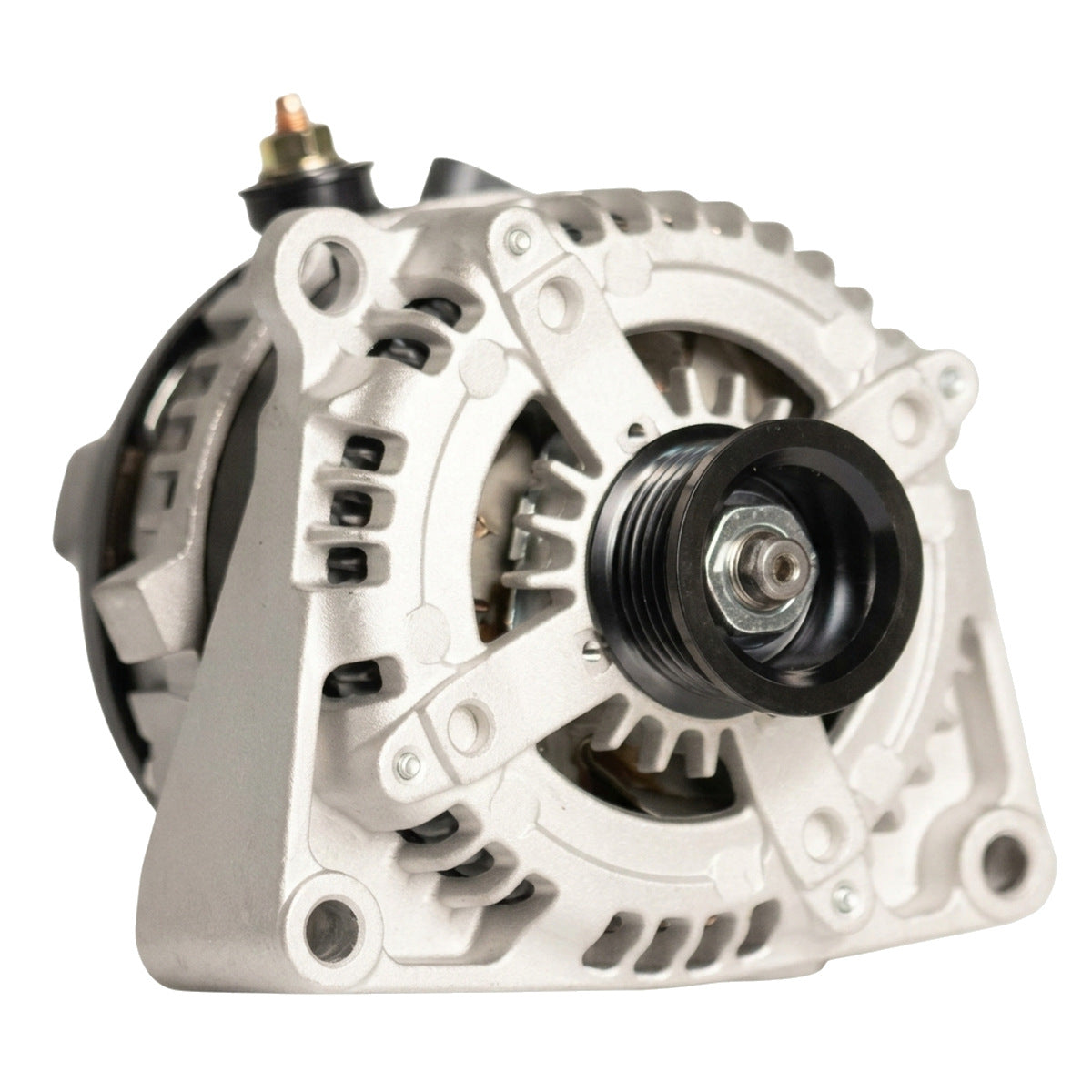

High Output Alternator for Chevrolet Astro (2001-2004) 4.3L

High-Output 300A Hairpin Alternator for 2001-2004 Chevrolet Astro (M-Platform)

What it Does: The 300-amp high-output hairpin alternator replaces the undersized factory charging unit on the 2001-2004 Astro to deliver continuous, high-amperage 12-volt power for auxiliary electrical equipment, audio setups, and commercial accessories.

The Stock Chevrolet Astro Electrical Bottleneck

Factory charging systems on the M-Platform Astro were engineered around low-draw stock configurations using standard 105-amp or 145-amp units. When subjected to modern auxiliary loads, commercial inverters, or aftermarket electronics, the stock round-wire stator encounters severe heat soak and voltage drop below 12.6V at idle. Overheating causes the factory diodes in OEM units like 10480388 and 10464438 to degrade rapidly, resulting in rotor winding fatigue, dimming lights, and eventual rectifier breakdown under high continuous duty cycles on the Vortec 4.3L (LU3/L35) engine.

The Engineering Solution

This high-amperage upgrade implements square copper hairpin stator technology, significantly improving conductor slot fill to reduce internal electrical resistance and dissipate heat efficiently. Rated at 300 amps, this 12-volt, clockwise-rotation unit features a standard 6-groove serpentine pulley, heavy-duty internal voltage regulation, and an isolated 4-pin plug. Premium avalanche diode rectifiers maintain solid 14.4-volt output even under severe engine bay thermal conditions, delivering the current stability required to run demanding equipment without parasitic voltage loss.

What's Included

• 1 300-Amp Hairpin Alternator (6-Groove Pulley, 4-Pin Connector)

Technical Specifications

Compatibility

• 2001-2004 Chevrolet Astro Base 4.3L V6
• 2001-2004 Chevrolet Astro LS 4.3L V6
• 2001-2004 Chevrolet Astro LT 4.3L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the M-Platform Astro?

Yes, this is a direct fit for the 2001-2004 Chevrolet Astro equipped with the Vortec 4.3L engine replacing factory 105A or 145A units. Does not replace the factory 124-amp alternator found on select models.

Is an upgraded charging lead wire required?

Yes, installing a fused 0-gauge / 1/0 AWG power wire directly from the alternator positive stud to the battery terminal is strongly advised to support full 300A capacity safely.

The Chevrolet Van Durability Standard

Built for the harsh thermal profiles and relentless demands of utility, towing, and commercial hauling, this alternator ensures uninterrupted electrical delivery to maintain system voltage stability under maximum cargo payload.
