High Output Alternator for Cadillac Escalade (2002-2004) 5.3L 6.0L

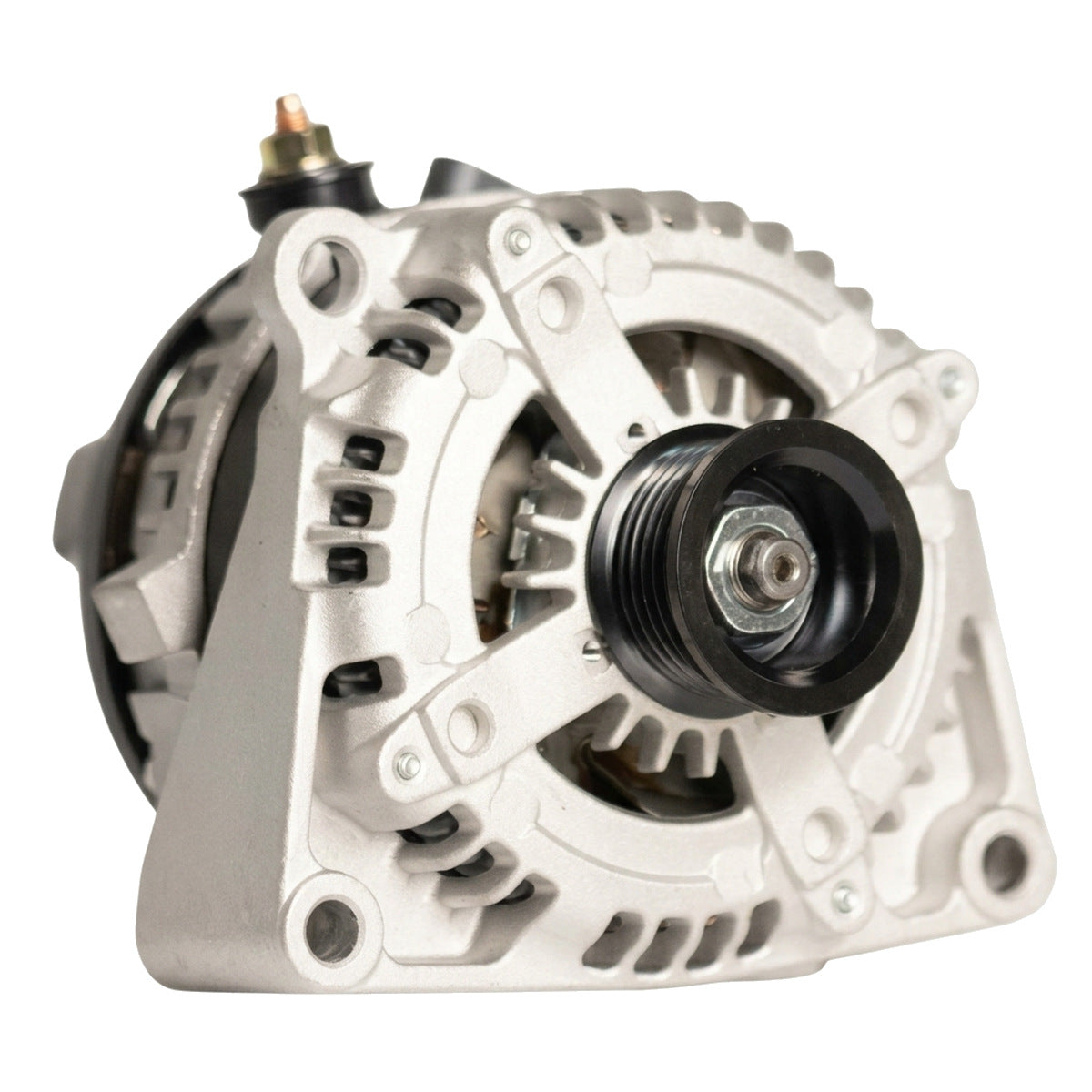

High-Output 300A Hairpin Alternator for 2002-2004 Cadillac Escalade (GMT800)

What it Does: The 300-amp hairpin alternator replaces the low-output factory charging unit on the 2002-2004 Cadillac Escalade to eliminate voltage drop and deliver stable 12-volt current under severe electrical loads.

The Stock Cadillac Escalade Charging Limitations

Factory GMT800 platforms came equipped with undersized 105-amp or 145-amp Delco alternators that utilize conventional round-wire stator windings. Under heavy thermal load and prolonged idle speeds, these original units suffer significant heat soak, frequently dropping output below 65 amps. When running aftermarket audio, auxiliary lighting, trailer brakes, or high-draw luxury accessories, the stock system experiences severe voltage sag, accelerating battery failure and causing electrical bus noise across factory GM Class 2 data networks.

The Engineering Solution

This heavy-duty unit implements square-wire hairpin stator technology, dramatically increasing copper slot fill to maximize conductive surface area. This architecture reduces internal resistance and thermal degradation, generating over 180 amps at curb idle and a full 300 amps at operational RPM. Hand-assembled with heavy-duty internal rectifiers, a precision-machined 6-groove pulley, and a robust 4-pin regulator, it directly interchanges with factory part numbers 321-1798, 321-2104, 8247, 10480388, and 10464438 without bracket modification.

What's Included

• 1x 300-Amp Hairpin Heavy-Duty Alternator (12V, Clockwise Rotation, 6-Groove Pulley, 4-Pin Plug)

Technical Specifications

Compatibility

• 2002-2004 Cadillac Escalade 5.3L V8 (LM7)
• 2002-2004 Cadillac Escalade 6.0L V8 (LQ9)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT800 Escalade?

Yes, this is a direct fit for the 2002-2004 Cadillac Escalade equipped with the LM7 5.3L or LQ9 6.0L engine replacing stock 105A or 145A units. Does not replace the factory 124-amp alternator found on select sub-models.

Do I need to upgrade my main power cabling?

Yes, a 1/0 AWG "Big 3" charging wire upgrade is required to safely handle the 300-amp output without damaging factory harness wiring.

The Cadillac Caliber

Built for demanding towing setups and power-intensive luxury platforms, this high-output system ensures steady DC voltage rail stability under peak cabin demand and severe hauling conditions.
