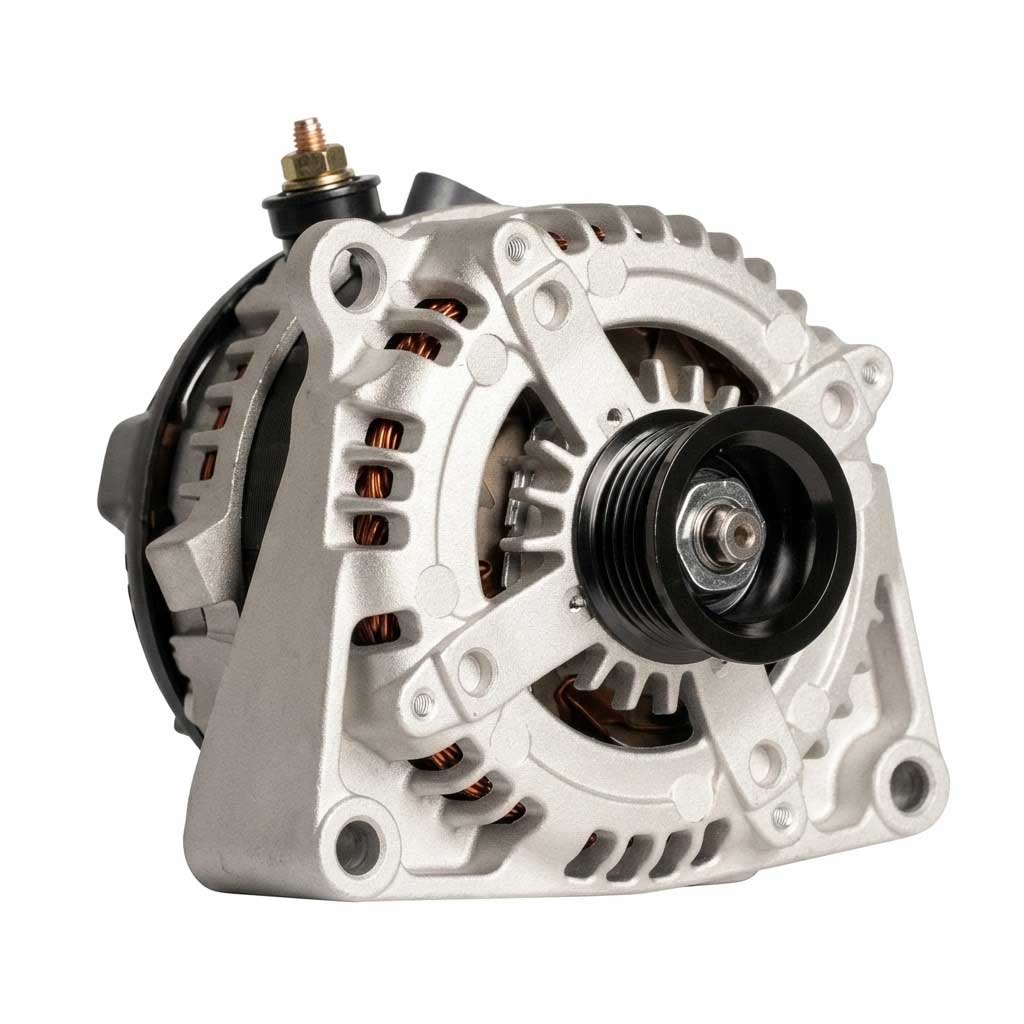

High Output Alternator for Buick Rainier (2004-2006) 5.3L

High-Amp High Output Alternator for 2004-2006 Buick Rainier (GMT360)

What it Does: The 250-Amp High Output Alternator replaces the factory charging unit on the 2004-2006 Buick Rainier to eliminate voltage sag and provide consistent high-amperage current under heavy electrical loads.

The Stock Buick Rainier Charging Bottleneck

Factory charging systems on the GMT360 platform were engineered around standard baseline accessories with minimal overhead. The OEM Delphi/AD244 units typically deliver only 145 to 150 amps, making them prone to severe voltage drops and thermal throttling under auxiliary loads. Extended idle periods cause diode bridge overheating and regulator fatigue in the cramped engine bay of the 5.3L Vortec 5300, leading to dimming headlights, unstable sensor reference voltages, and accelerated battery drain when running auxiliary lighting, audio amplifiers, or trailer equipment.

The Engineering Solution

Engineered for high current delivery, this 250-amp alternator utilizes precision heavy-gauge copper windings, an oversized heavy-duty rectifier bridge, and high-temperature avalanche diodes to maximize heat dissipation and resist thermal failure. Hand-assembled in the USA, it provides exceptional output at idle speeds while maintaining continuous peak efficiency throughout high-RPM operation. Direct bolt-in fitment preserves factory belt alignment and integrates seamlessly with OEM brackets and serpentine pulley drives.

What's Included

• 1 x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2004 Buick Rainier CXL / CXL Plus 5.3L V8 (LM4)
• 2005 Buick Rainier CXL 5.3L V8 (LH6)
• 2006 Buick Rainier CXL 5.3L V8 (LH6)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT360 Rainier?

Yes, this is a direct bolt-on fit for the 2004-2006 Buick Rainier equipped with the LM4 or LH6 5.3L V8 engine; it does not fit 4.2L inline-six (LL8) models without bracket and harness modifications.

Do I need to upgrade my electrical wiring for a 250-amp alternator?

A 1/0 AWG Big 3 wiring upgrade (battery ground, engine ground, and alternator charge lead) is strongly recommended to safely deliver the full 250-amp output without cooking factory fusible links.

The Buick Towing & Utility Standard

Built to handle heavy towing packages, rear air-leveling suspension compressors, and high-draw accessories, this unit delivers rock-solid electrical stability for demanding truck and SUV applications.
