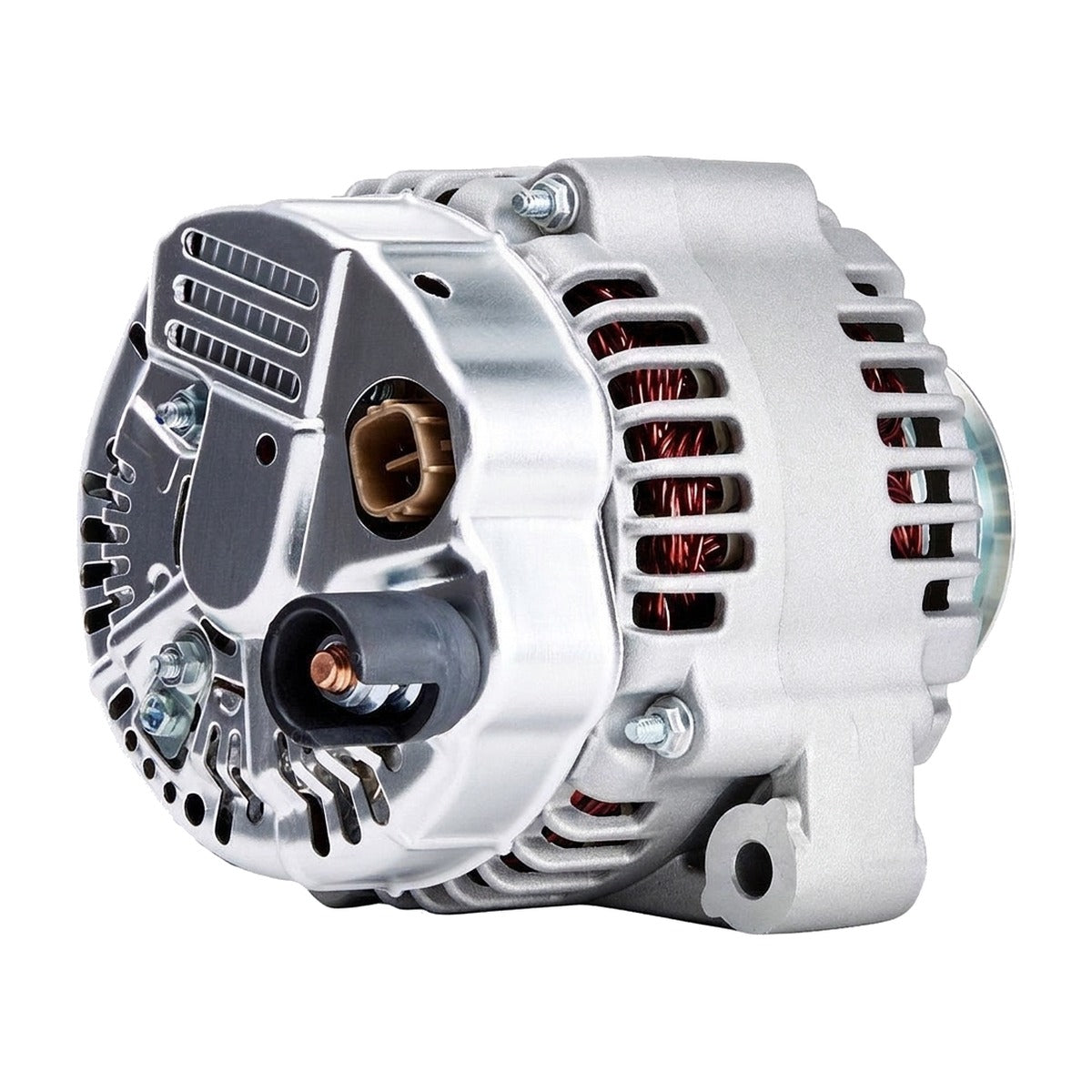

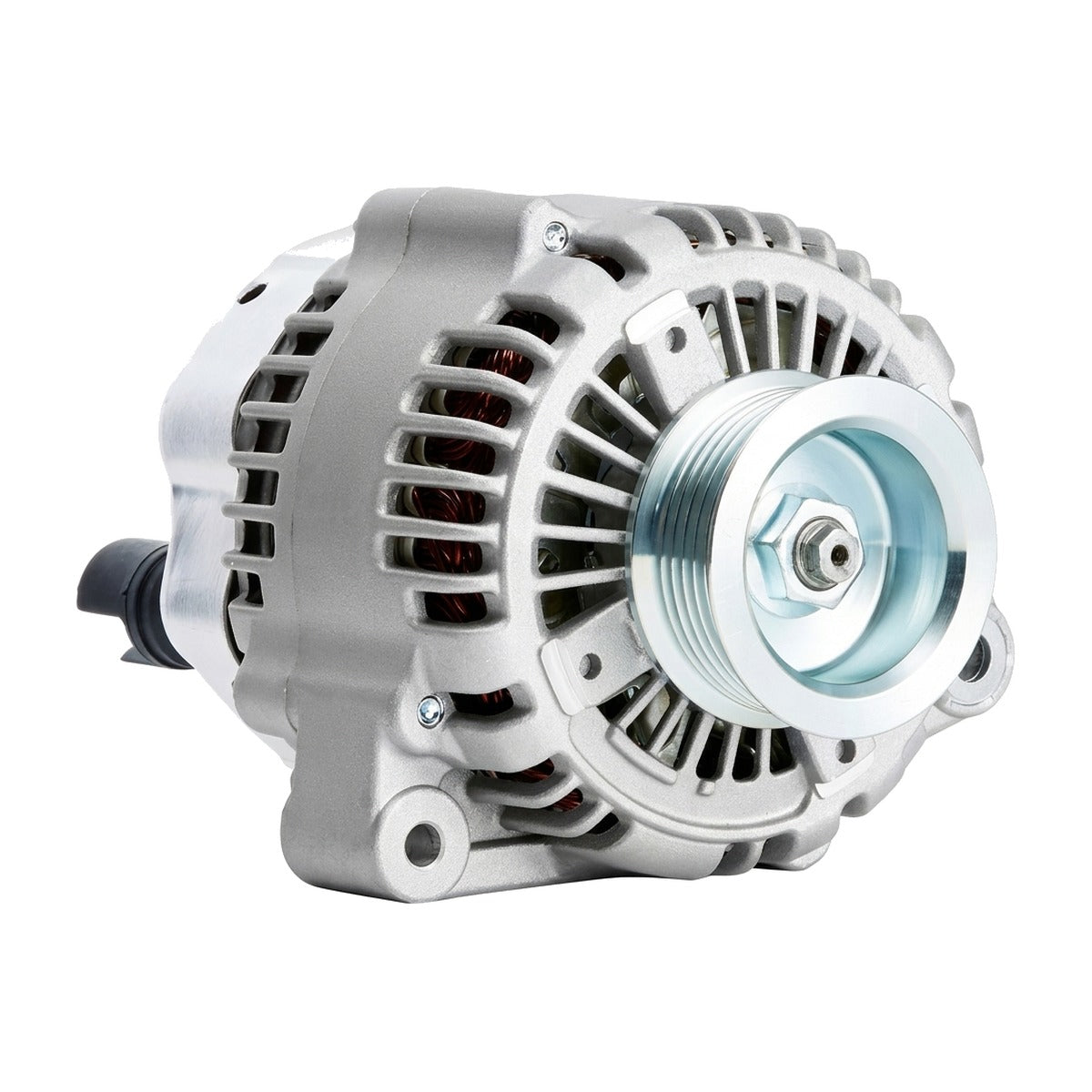

High Output Alternator for Acura MDX TL CL (2000-2003) 3.2L 3.5L

High-Capacity 200A Alternator for 2000-2003 Acura MDX, TL, CL (YD1, UA5, YA4)

What it Does: The 200-amp high-output alternator replaces the factory charging unit on 2000-2003 Acura MDX, TL, and CL models to supply consistent, elevated amperage for heavy electrical demands without voltage drop.

The Stock Acura MDX,TL,CL Charging System Weakness

The factory Denso charging systems paired with the J32A and J35A powerplants output between 105 and 130 amps from the factory. Over time, heat soak and increased electrical loads degrade the OEM stator coils and internal rectifiers. When powering aftermarket audio systems, high-draw lighting, or multiple onboard accessories, the factory unit suffers from severe idle voltage drop down to 12.5V or lower. This continuous thermal and electrical strain induces stator burnout, premature diode failure, dimming cabin electronics, and battery discharge at stoplights.

The Engineering Solution

This 200-amp heavy-duty alternator solves charging starvation using high-density, heavy-gauge copper stator windings that yield maximum conductivity and reduced internal resistance. Precision dynamic rotor balancing prevents bearing stress at high engine RPM, while industrial sealed bearings handle continuous high-rev mechanical load. Engineered with an integrated heavy-duty solid-state internal voltage regulator, this unit maintains clean 14.2V–14.6V output across the entire rev range. The housing retains factory mounting geometry, pulley alignment, and the factory plug connector for an uncompromised bolt-on installation.

What's Included

• 1x High Output 200-Amp Alternator

Technical Specifications

Compatibility

• 2001-2002 Acura MDX 3.5L V6 (YD1)
• 2000-2003 Acura TL 3.2L V6 (UA5)
• 2001-2003 Acura CL 3.2L V6 (YA4)

Frequently Asked Questions & Fitment Warnings

Does this fit the UA5, YA4, or YD1 chassis?

Yes, this unit directly bolts onto the 2000-2003 Acura MDX, TL, and CL equipped with the 3.2L or 3.5L J-Series V6 engine using factory mounting positions.

Do I need to upgrade my factory wiring with this 200A unit?

While the alternator functions with stock harnesses, executing a "Big 3" wiring upgrade with 4-gauge or 1/0-gauge power and ground cables is highly recommended to transfer full 200-amp capacity without system resistance.

The Acura Caliber Standard

J-Series powertrains rely on consistent electrical stability for accurate ECU sensor communication and smooth VTEC solenoid engagement. This high-output replacement safeguards critical vehicle electronics against voltage sags under full load.
