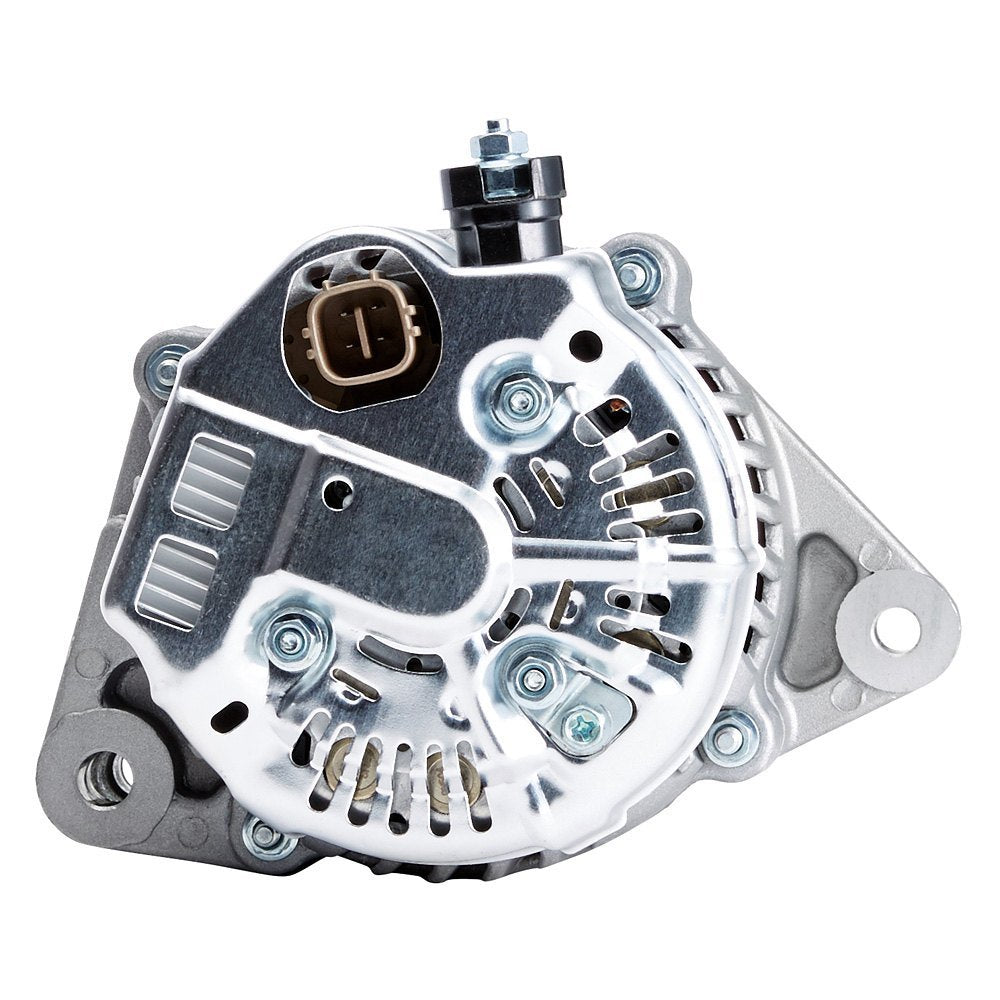

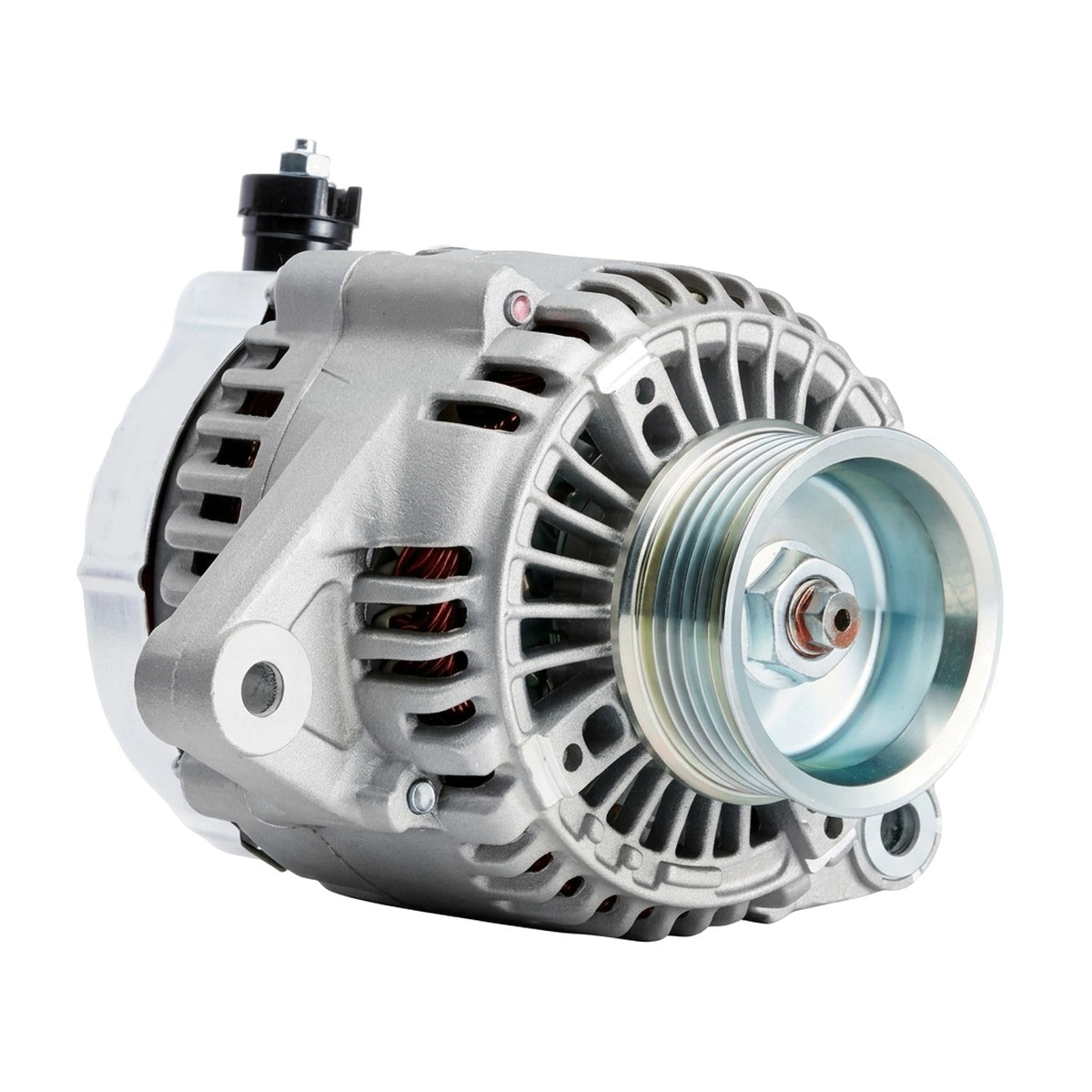

High Output Alternator for Acura CL (1998-1999) 2.3L

High-Output 200A Alternator for 1998-1999 Acura CL (YA1)

What it Does: The 200 Amp high-output alternator replaces the factory charging unit on the 1998-1999 Acura CL to eliminate voltage drop and deliver stable current under heavy electrical loads.

The Stock Acura CL Charging System Weakness

The factory 80-amp charging system on the first-generation YA1 chassis was engineered strictly for baseline electrical demands. At low engine speeds between 700 and 800 RPM, stock stators produce fewer than 45 usable amps. When secondary loads like high-draw cooling fans, aftermarket audio systems, or modern electronics are introduced, severe thermal stress builds within the factory assembly. This chronic current deficit triggers heavy thermal cycling, leading to premature diode pack breakdown in the stock rectifier and intermittent voltage drops that degrade ignition coil saturation.

The Engineering Solution

This high-output unit incorporates heavy-gauge copper stator windings coupled with high-temp avalanche diodes to maximize low-RPM efficiency and withstand sustained electrical draw. Delivering over 120 amps at engine idle and a full 200-amp continuous ceiling at operating speeds, it preserves consistent system voltage across all driving conditions. Constructed in the USA, it matches factory mounting dimensions for the F23A1 engine block, providing a seamless bolt-in replacement for original equipment part numbers including 31100-PAA-L71 and 102211-1010 without requiring bracket alterations.

What's Included

• 1x 200 Amp High Output Alternator

Technical Specifications

Compatibility

• 1998 Acura CL Base / Premium 2.3L L4 (F23A1)
• 1999 Acura CL Base / Premium 2.3L L4 (F23A1)

Frequently Asked Questions & Fitment Warnings

Does this fit the YA1 CL?

Yes, this is a direct fit for the 1998-1999 Acura CL equipped with the F23A1 engine. Does not fit 3.0L V6 (J30A1) models.

Do I need to upgrade the primary charging wire?

A 4-gauge or 1/0-gauge Big-3 wiring upgrade from the alternator positive post to the battery is strongly recommended to support the full 200-amp capacity safely.

The Acura Caliber

Restoring and reinforcing your powertrain's electrical infrastructure ensures precise sensor calibration, consistent fuel delivery, and optimal ignition timing performance across the entire rev range.
