Exhaust Kit for Ford F-250 (1998-2006) 4.6L

High-Flow Dual Tailpipe Exhaust Kit for 1998-2006 Ford F-250 (PN-96 / Super Duty)

What it Does: The Exhaust Kit converts the restrictive factory single-outlet system on the 1998-2006 Ford F-250 into a free-flowing dual exhaust to lower backpressure and improve scavenging.

The Stock Ford F-250 Exhaust Restriction

The OEM exhaust configuration on the PN-96 light-duty and early Super Duty platforms bottlenecks the Modular 4.6L V8 (2-Valve SOHC). Factory systems choke exhaust gas velocity using restrictive, multi-chambered reverse-flow mufflers, restrictive factory crimp bends, and single 2.5-inch outlet plumbing. Under heavy towing loads and sustained RPM, this creates substantial thermal retention and excessive parasitic exhaust backpressure, which degrades volumetric efficiency, increases EGTs, and diminishes mid-range pulling torque.

The Engineering Solution

This dual muffler-back configuration replaces post-catalytic plumbing with a high-flow chambered muffler and mandrel-bent tailpipes. The included Flowsound 2-chamber muffler incorporates a single 3.0-inch inlet branching into dual 2.5-inch outlets, directing exhaust pulses over internal directional deflectors without acoustic packing material to eliminate heat degradation. The dual 2.5-inch tailpipes are constructed from aluminized steel and CNC mandrel bent to preserve a uniform cross-sectional internal diameter throughout every radius bend, ensuring laminar exhaust velocity out the rear frame rail exits while clearing OEM spare tires and receiver hitches.

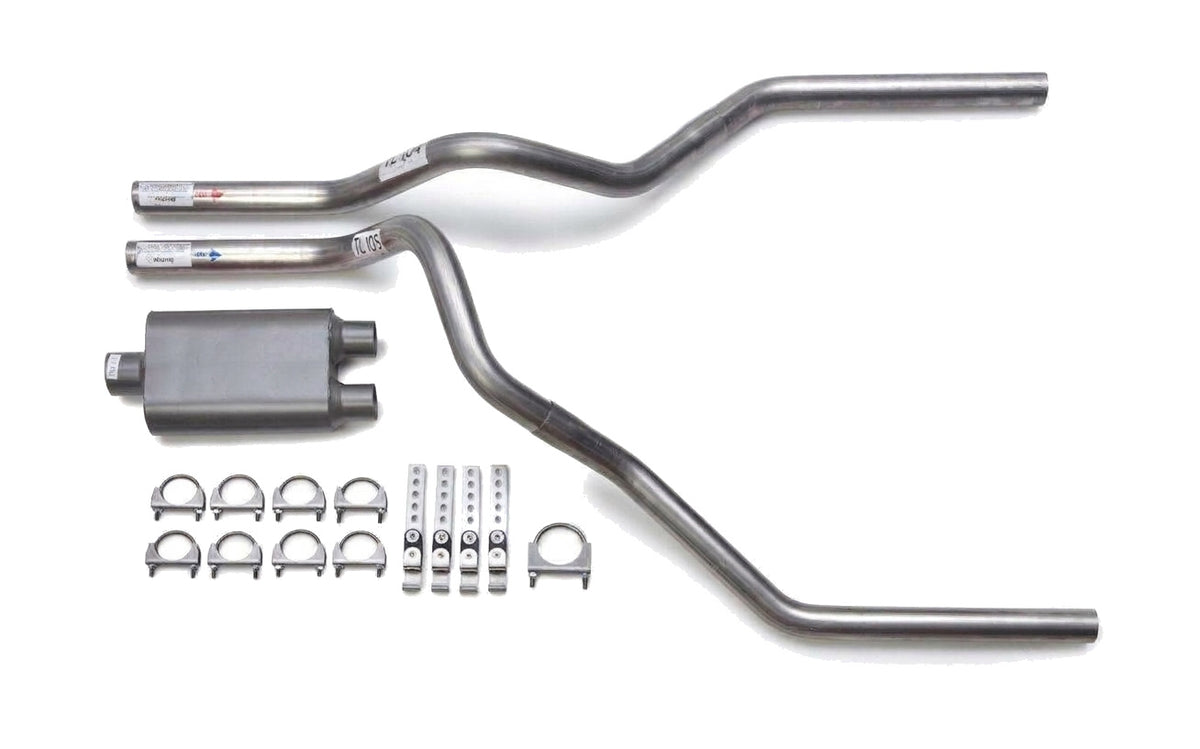

What's Included

• 1 Flowsound 2-chamber muffler (single 3-inch inlet, dual 2.5-inch outlets)
• 2 aluminized mandrel-bent two-piece 2.5-inch tail pipes (slip-together design)

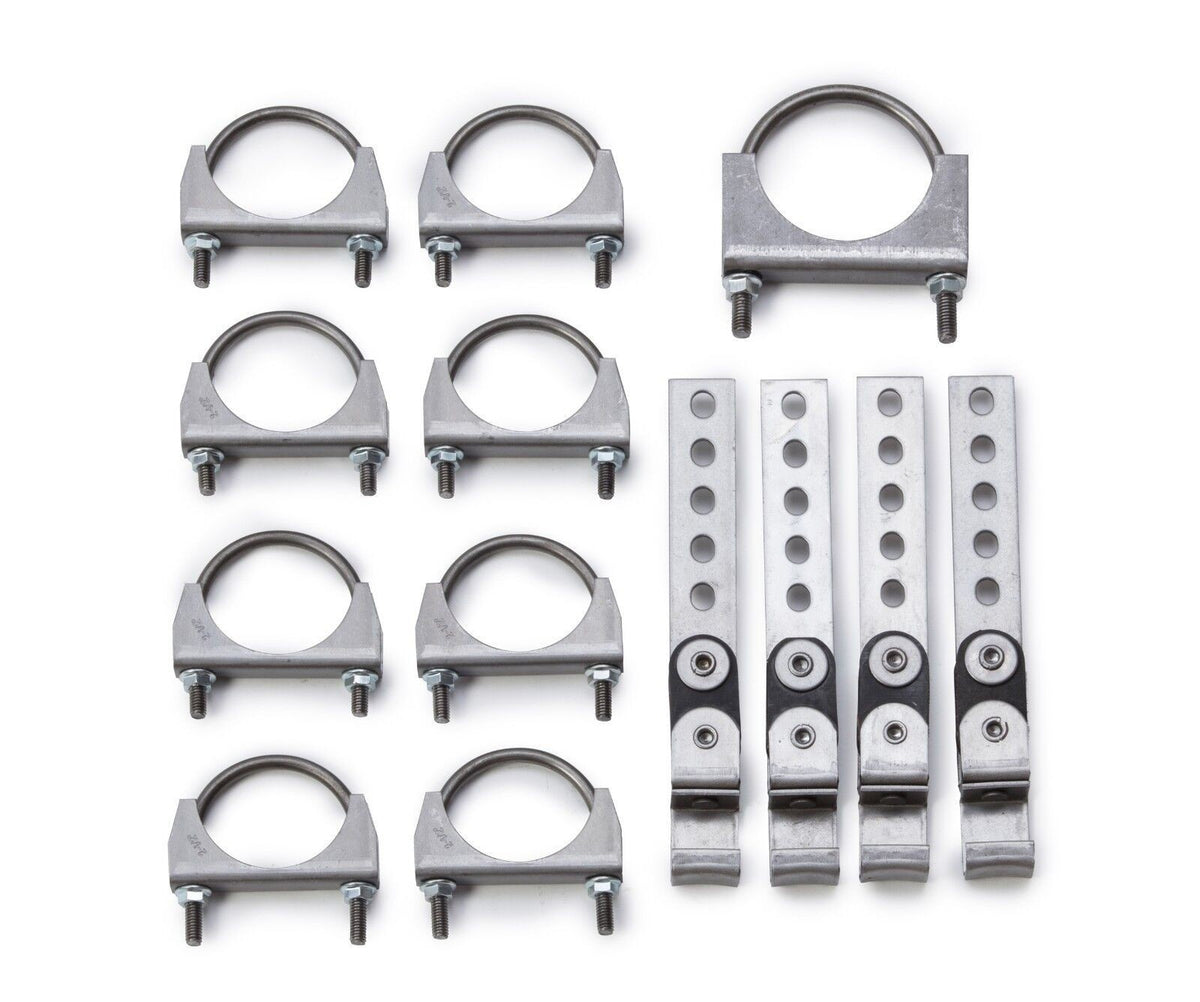

• 8 muffler clamps
• 1 larger exhaust clamp
• 4 rubber-insulated hangers

Technical Specifications

Compatibility

• 1998-2006 Ford F-250 (4.6L V8 Gasoline and Flex-Fuel)
• Only fits models equipped with a factory single-inlet muffler configuration
• Fits all standard, extended, and crew cab wheelbases

Frequently Asked Questions & Fitment Warnings

Does this fit the PN-96 / Super Duty F-250?

Yes, this is a direct fit for the 1998-2006 Ford F-250 equipped with the Modular 4.6L V8 engine. Does not fit dual-inlet factory muffler systems, 5.4L V8, 6.8L V10, or Powerstroke Diesel applications.

Is this kit a direct bolt-on replacement?

No, this is a builder-style muffler-back kit that requires professional fabrication and cutting/welding skills for precise positioning, especially on modified suspensions.

The Ford Heavy-Duty Caliber

Built for structural rigidity and towing endurance, this exhaust architecture ensures consistent thermal scavenging under full payload without collapsing internal baffles or degrading under continuous high EGT conditions.
