Exhaust Kit for Ford F-150 (1991-1994) 3.8L

High-Flow Dual Tailpipe Exhaust Kit for 1991-1994 Ford F-150 (Ninth Generation / OBS)

What it Does: The Exhaust Kit replaces the restrictive factory single-outlet setup on the 1991-1994 Ford F-150 to reduce exhaust backpressure, improve scavenging, and deliver an aggressive exhaust tone.

The Stock Ford F-150 Exhaust Restriction

From the factory, the Essex V6 on the Ninth Generation (OBS) platform is choked down by a small-diameter, chambered OEM muffler and a single restrictive tailpipe. Factory press-bent tubing creates internal pinch points at every radius bend, causing turbulent boundary-layer separation and elevated exhaust gas backpressure. This parasitic restriction hampers thermal scavenging across the combustion cycle, elevating underbody heat soak, dulling throttle response under load, and muting the natural exhaust signature of the powerplant.

The Engineering Solution

This dual muffler-back system addresses factory flow bottlenecks using mandrel-bent 2.5-inch aluminized steel tubing to maintain a consistent internal diameter without cross-sectional deformation. It features a Flowsound 2-chamber muffler with a single 3-inch inlet splitting into dual 2.5-inch outlets, balancing high acoustic dampening with minimal flow resistance. The slip-fit tailpipes route cleanly along the outside edge of the frame rail, intentionally engineered to retain full clearance for factory receiver hitches and standard OEM spare tire assemblies across all wheelbase configurations.

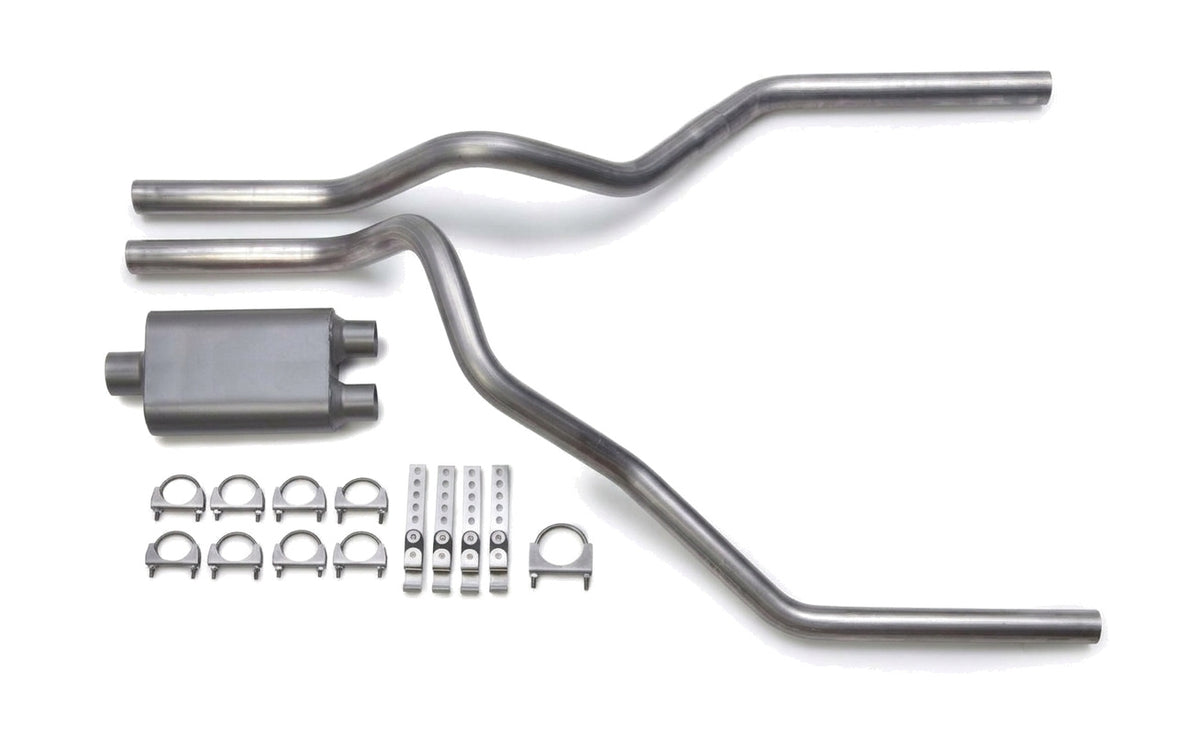

What's Included

• 1 Flowsound 2-chamber muffler (single 3" inlet, dual 2.5" outlets)
• 2 aluminized mandrel-bent two-piece 2.5" tail pipes (slip-together)

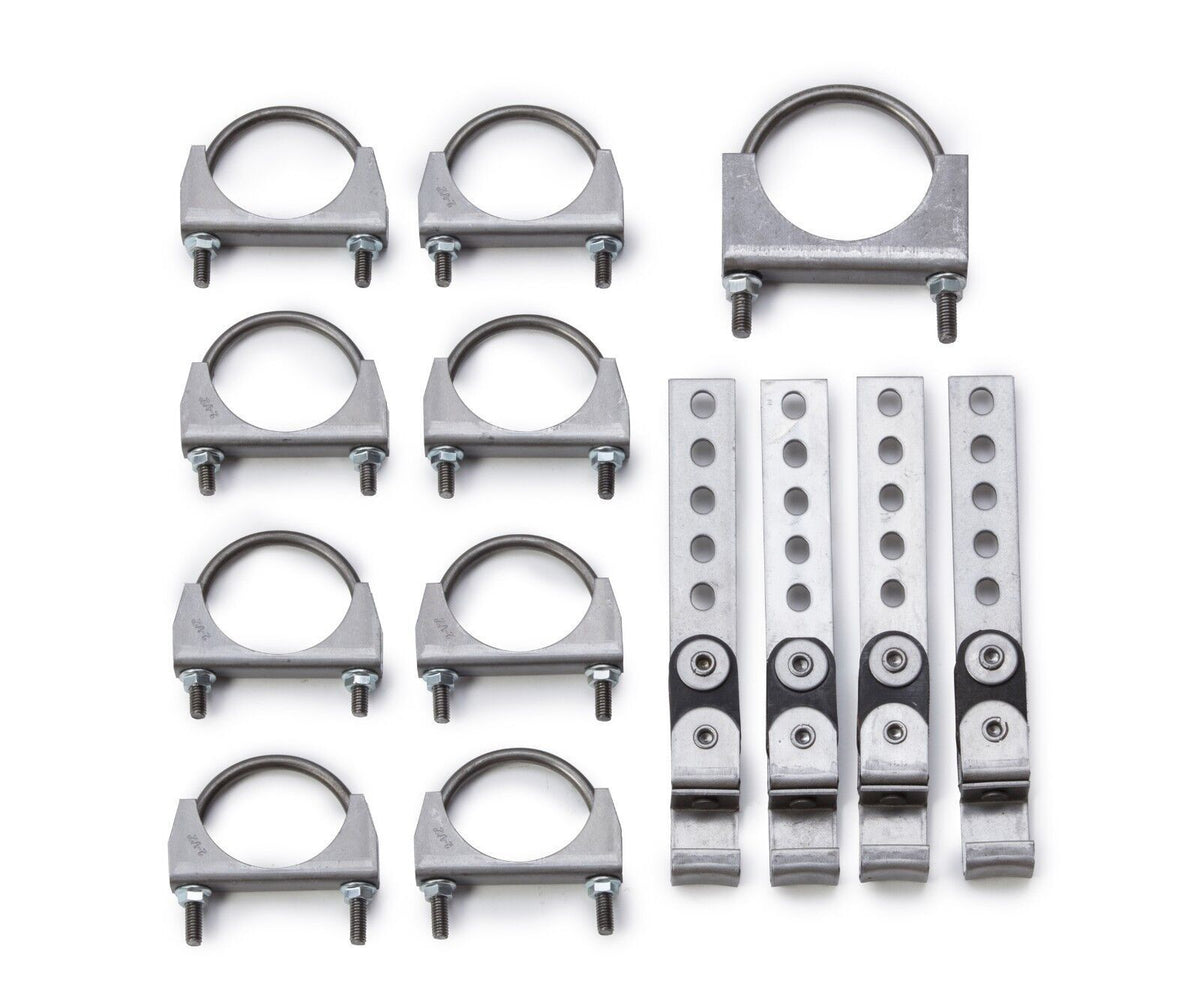

• 8 muffler clamps
• 1 larger exhaust clamp
• 4 rubber-insulated hangers

Technical Specifications

Compatibility

• 1991 Ford F-150 3.8L V6 (Gasoline & Flex-Fuel, Factory Single-Inlet Muffler Only)
• 1992 Ford F-150 3.8L V6 (Gasoline & Flex-Fuel, Factory Single-Inlet Muffler Only)
• 1993 Ford F-150 3.8L V6 (Gasoline & Flex-Fuel, Factory Single-Inlet Muffler Only)
• 1994 Ford F-150 3.8L V6 (Gasoline & Flex-Fuel, Factory Single-Inlet Muffler Only)

Frequently Asked Questions & Fitment Warnings

Does this fit the OBS (9th Gen) F-150?

Yes, this system fits the 1991-1994 Ford F-150 equipped with the 3.8L Essex V6 engine that came factory-equipped with a single-inlet muffler. This kit will not fit trucks equipped with factory dual-inlet mufflers, V8 engine variants, or aftermarket suspension and oversized tire configurations without custom fabrication.

Is this exhaust kit a direct bolt-on installation?

No, this is not a direct bolt-on kit; an experienced installer may need to cut, align, or fabricate connecting sections forward of the muffler.

The Ford Truck Standard

Engineered for heavy-duty work environments and payload cycles, this aluminized steel dual system offers lasting corrosion resistance and reliable exhaust scavenging whether you are hauling gear on the job site or towing on open highways.
