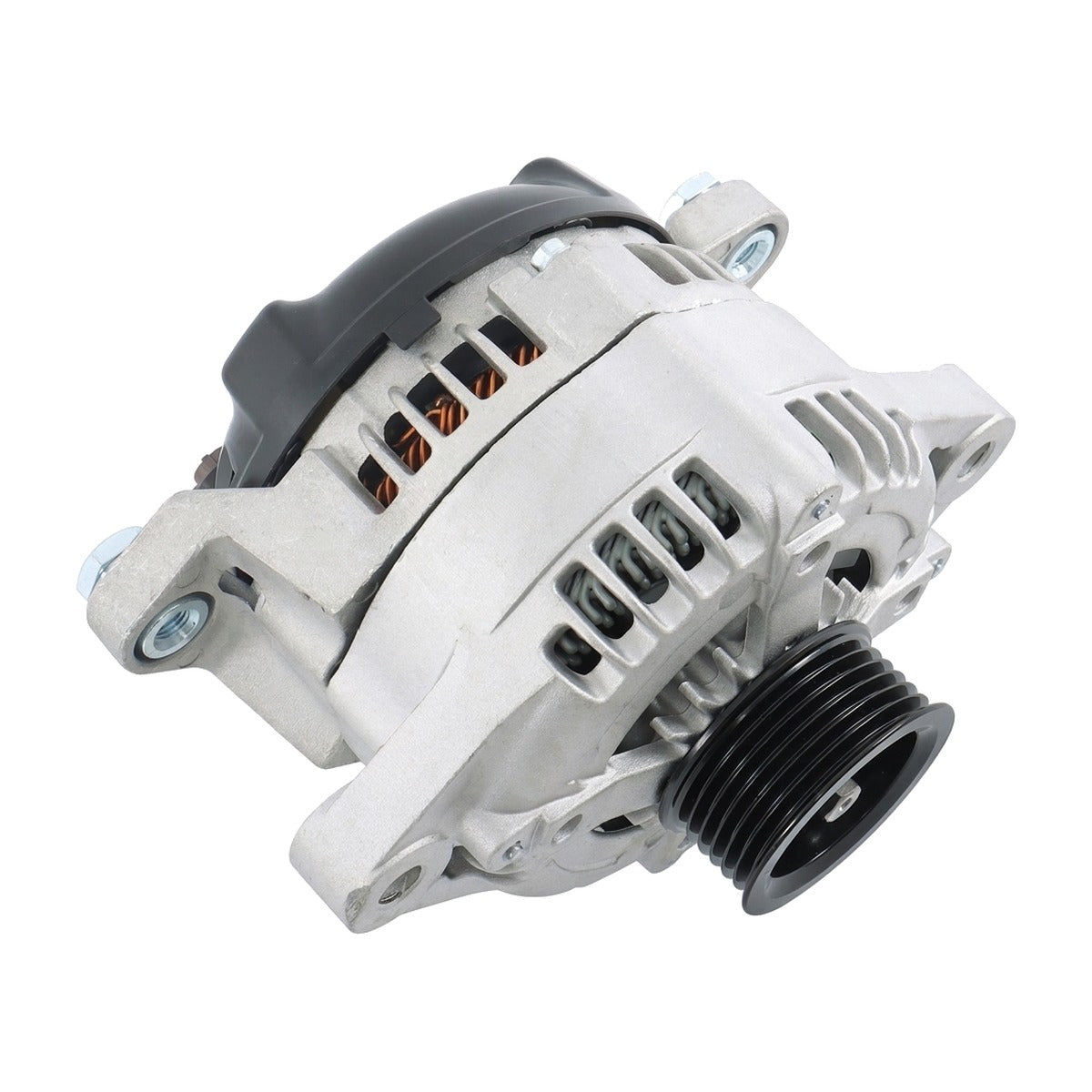

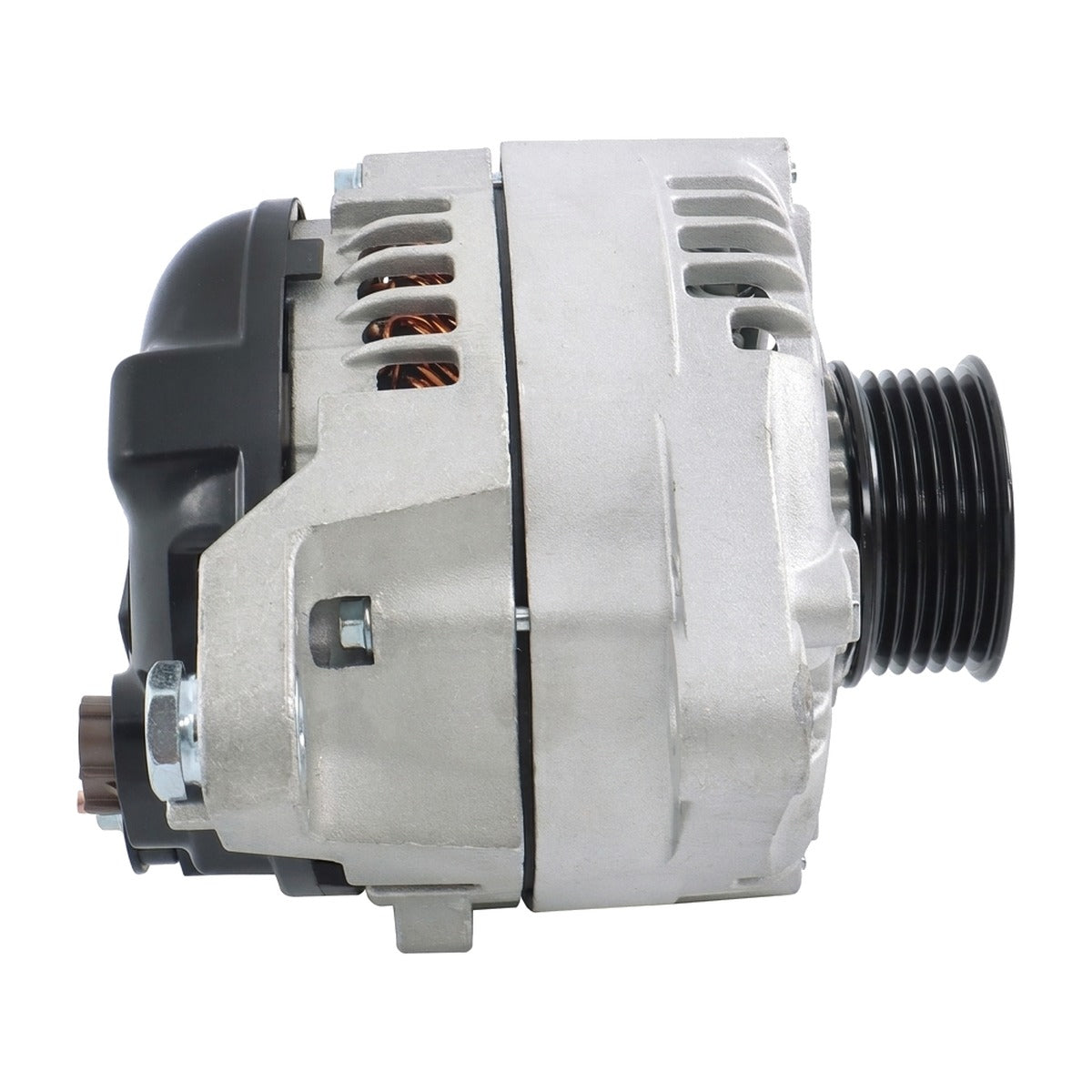

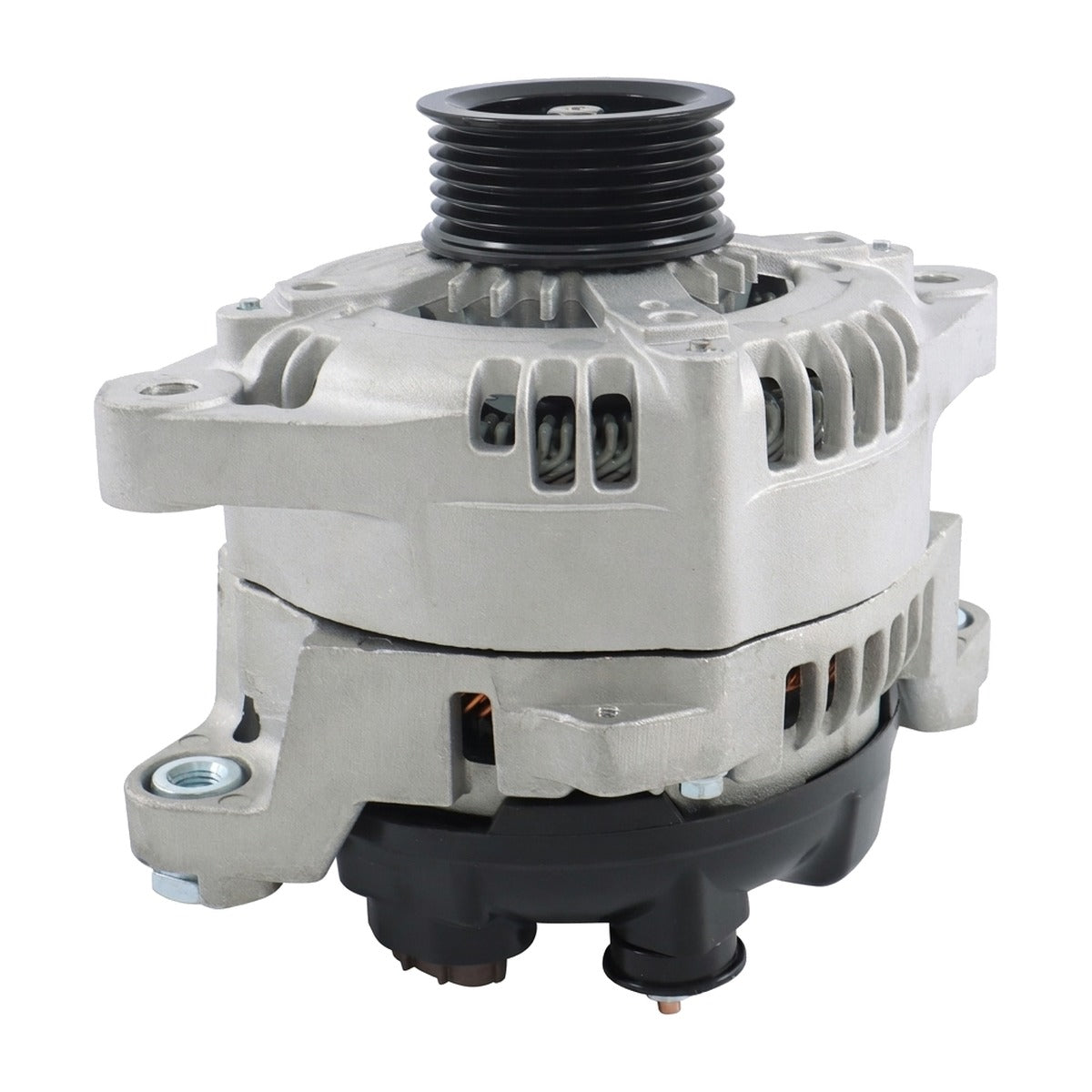

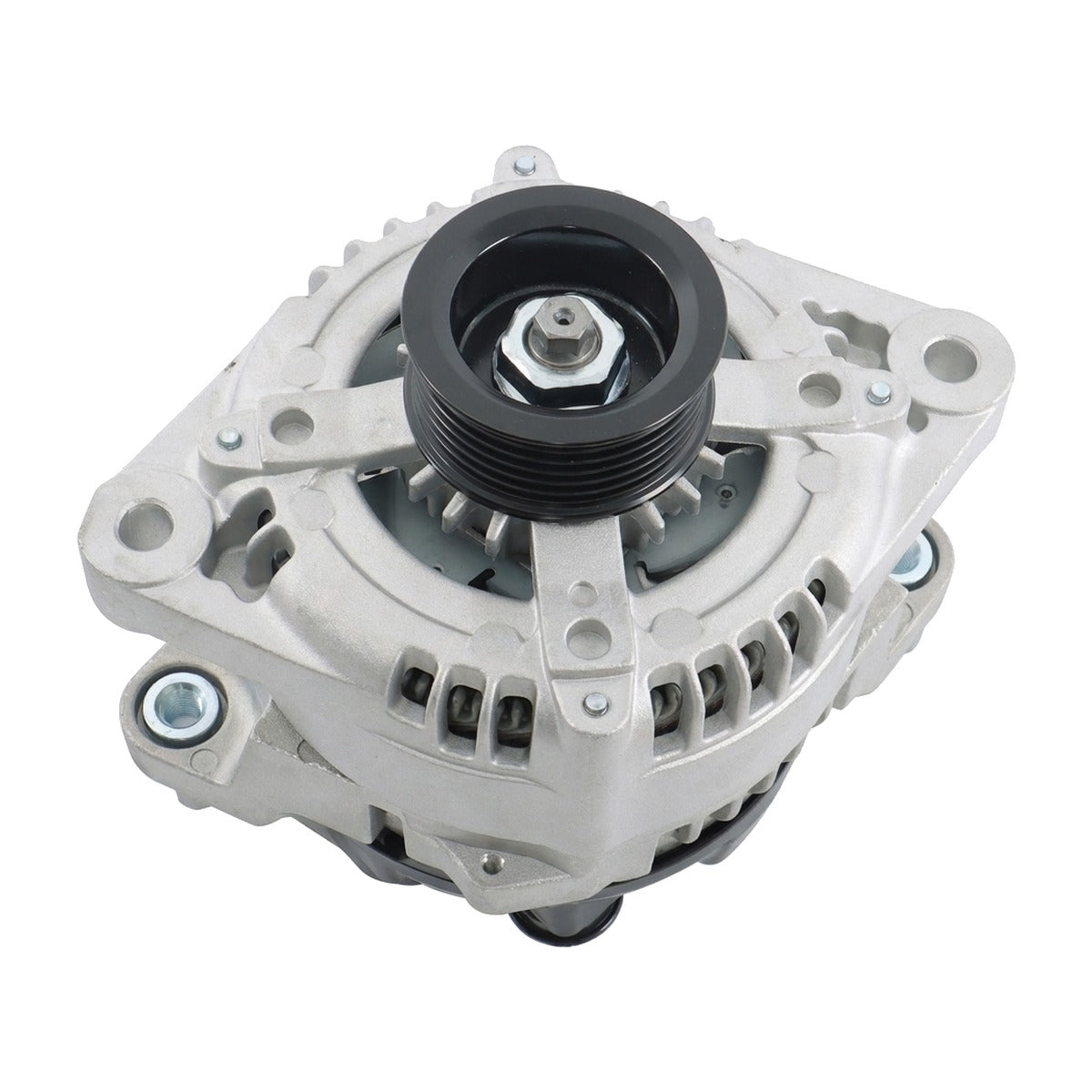

Alternator for Hyundai Sonata (2015-2019) 2.0L 2.4L

High-Output Direct-Replacement Alternator for 2015-2019 Hyundai Sonata (LF)

What it Does: The replacement alternator restores factory-spec 150-amp charging performance on the 2015-2019 Hyundai Sonata to prevent battery depletion, electrical accessory failure, and erratic charging voltage.

The Stock Hyundai Sonata Charging System Failure Points

Factory alternators on the LF platform routinely succumb to sustained engine compartment thermal cycling and electrical fatigue. High ambient underhood temperatures cause the internal diodes in the rectifier bridge to break down, resulting in AC ripple voltage entering the 12V DC system. Concurrently, factory brush packs wear down against the slip rings, while stock bearing grease degrades over time, causing rotor shaft runout, audible bearing whine, flickering interior illumination, and dropouts in electronic power steering and ECU module operations.

The Engineering Solution

This replacement charging unit is engineered with high-temperature enameled copper stator windings to sustain high current throughput without insulation breakdown under extreme duty. Fitted with an internal solid-state voltage regulator, balanced rotor assembly, and low-friction, heavy-duty sealed bearings, it prevents premature shaft oscillation and harmonic vibration at elevated RPM. The integrated 6-groove decoupler pulley aligns precisely with the Theta II serpentine belt layout to maintain stable 13.5V to 14.5V DC output and prevent voltage drop under peak accessory loads.

What's Included

• 1 Alternator (150A, 12V, clockwise rotation, 6-groove pulley, 3-pin blade connector)

Technical Specifications

Compatibility

• 2015 Hyundai Sonata 2.0L
• 2015 Hyundai Sonata 2.4L
• 2016 Hyundai Sonata 2.0L
• 2016 Hyundai Sonata 2.4L
• 2017 Hyundai Sonata 2.0L
• 2017 Hyundai Sonata 2.4L
• 2018 Hyundai Sonata 2.0L
• 2018 Hyundai Sonata 2.4L
• 2019 Hyundai Sonata 2.0L
• 2019 Hyundai Sonata 2.4L

Frequently Asked Questions & Fitment Warnings

Does this fit the LF Sonata?

Yes, this is a direct fit for the 2015-2019 Hyundai Sonata equipped with the Theta II 2.0L and 2.4L engines.

Should the battery be fully charged before testing this new alternator?

Yes, always ensure the battery is fully charged prior to installation to prevent overloading the new internal voltage regulator during initial startup.

The Hyundai Commuter Standard

Engineered to withstand daily stop-and-go commuting and severe thermal cycles, this alternator restores stable factory electronics without throwing charging system DTC codes.
