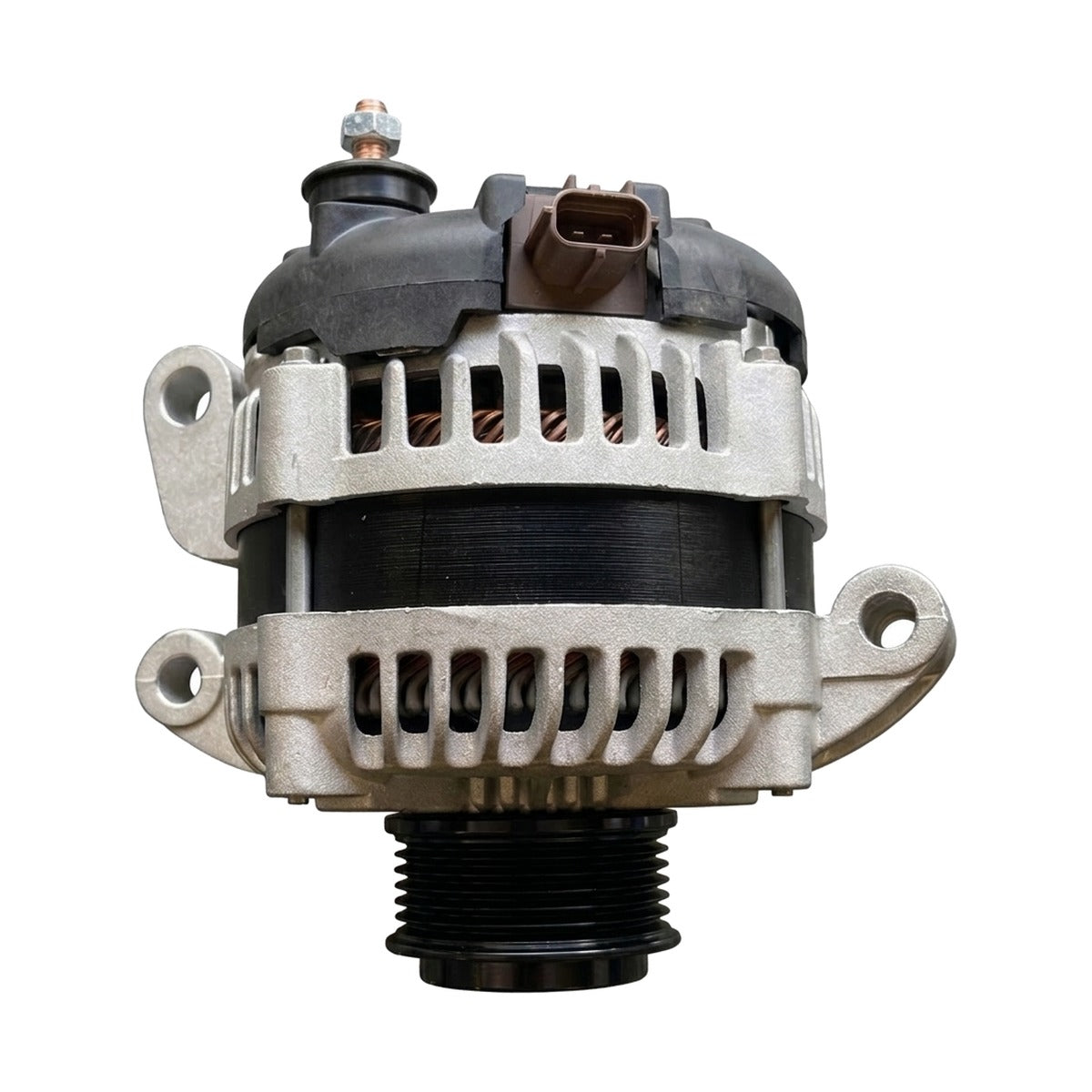

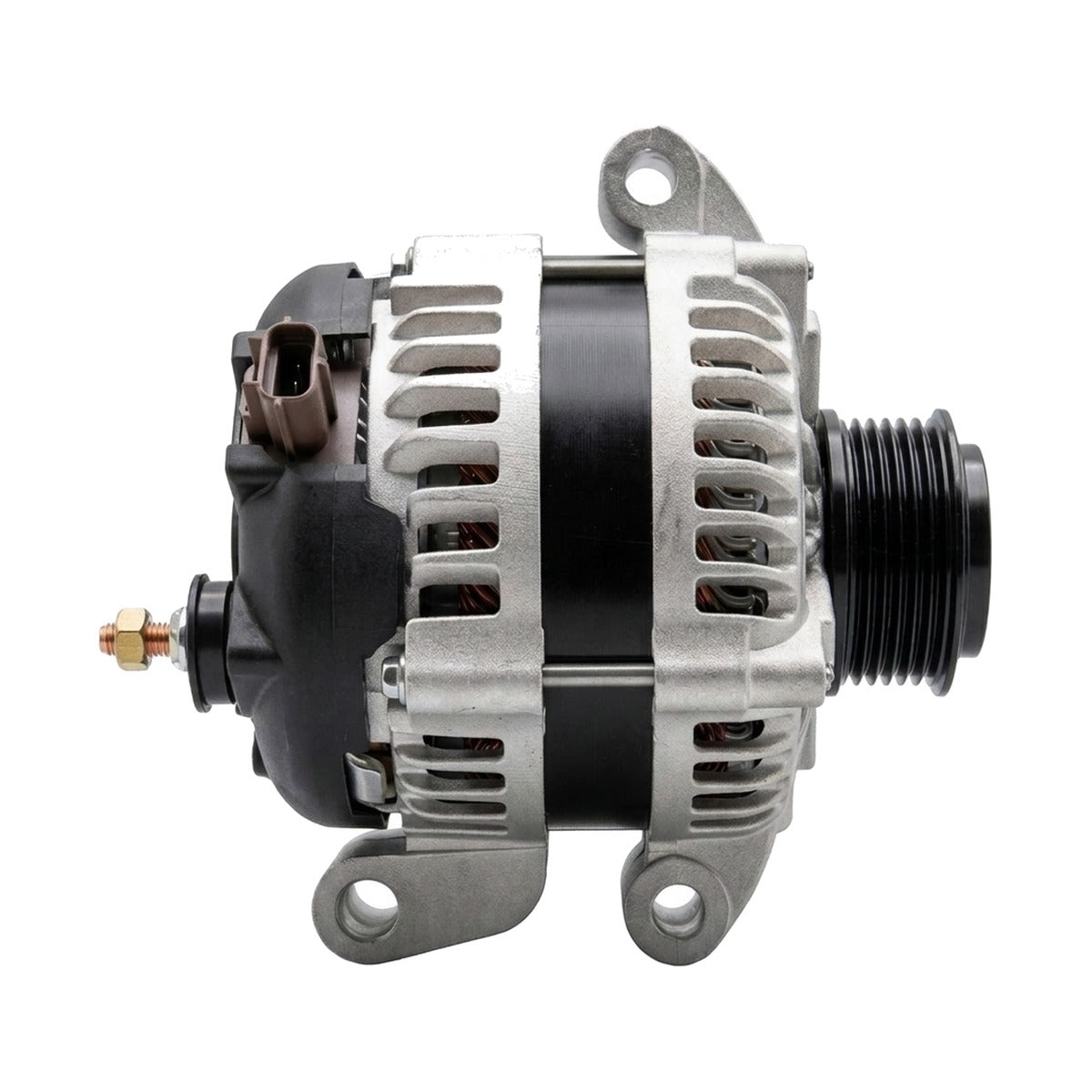

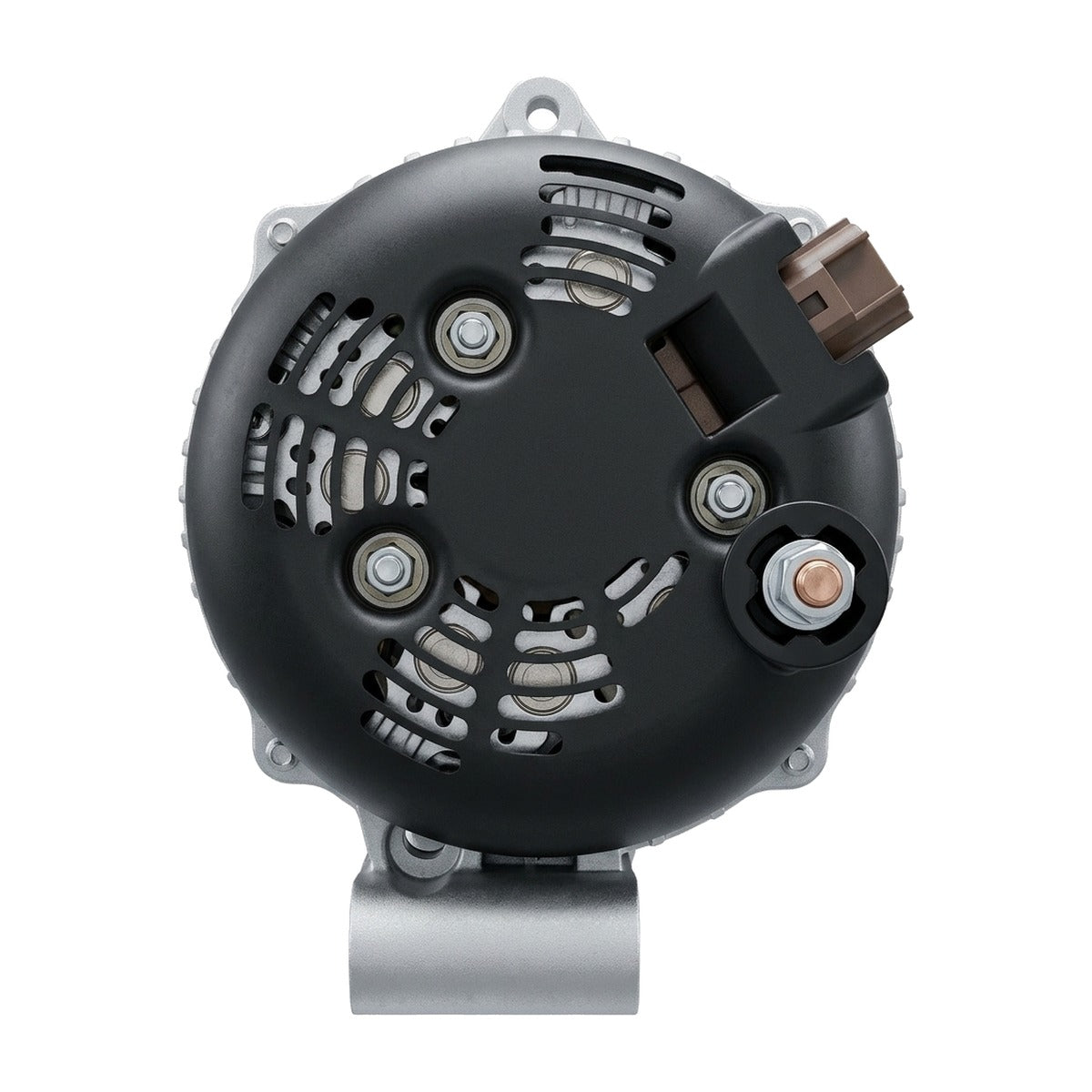

Alternator for Aston Martin DB9 (2005-2012) 6.0L

High-Output 200A Replacement Alternator for 2005-2012 Aston Martin DB9 (VH Platform)

What it Does: The 200-amp replacement alternator restores reliable charging system capacity to the 2005-2012 Aston Martin DB9 to prevent electrical dropouts and maintain proper battery voltage under heavy electrical load.

The Stock Aston Martin DB9 Charging System Degradation

The tightly packaged 5.9L V12 in the VH Platform DB9 creates significant engine bay thermal load, which severely degrades factory alternator windings and internal diodes over time. High heat soak breaks down the internal voltage regulator and causes diode trio failure, resulting in fluctuating voltage, weak battery charging at idle, flickering cabin instrumentation, and sporadic modules throwing phantom DTCs due to low baseline supply voltage across the CAN-bus architecture.

The Engineering Solution

This brand-new OE-spec unit replaces failure-prone original units with heavy-gauge copper stator windings and a dynamically balanced rotor for reduced harmonic vibration at high RPM. High-grade double-sealed bearings resist heat-induced bearing grease wash, while a heavy-duty internal voltage regulator delivers consistent 13.5V to 14.5V output under sustained auxiliary demand. Direct-fit mounting ears, factory OE harness pinouts, and correct pulley offset ensure complete plug-and-play installation without bracket modification or belt misalignment, matching OEM references 8D33-10300-AA and 104210-4080.

What's Included

• 1 Brand-New 200-Amp Alternator (Part # 10421-6210)

Technical Specifications

Compatibility

• 2005-2012 Aston Martin DB9 Coupe 6.0L V12
• 2005-2012 Aston Martin DB9 Volante 6.0L V12

Frequently Asked Questions & Fitment Warnings

Does this fit the VH Platform DB9?

Yes, this is a direct fit for the 2005-2012 Aston Martin DB9 equipped with the AM11 6.0L V12 engine.

Do I need to charge the battery prior to initial startup?

Yes, ensure the vehicle battery is fully charged prior to running the new alternator to avoid overloading the internal voltage regulator during its initial break-in cycle.

The Aston Martin Engineering Standard

Precision British grand touring demands uncompromising voltage stability to ensure sensitive onboard electronic control modules, transmission controllers, and active safety systems perform without voltage spikes or fault codes.
