Adjustable Lowering Links for Bentley Bentayga (2016-2024)

Precision-Engineered Adjustable Lowering Links for 2016-2024 Bentley Bentayga (4V1)

What it Does: The Adjustable Lowering Links replace the factory fixed ride-height sensor arms on the 2016-2024 Bentley Bentayga to provide customizable air suspension ride-height adjustment without throwing sensor faults.

The Stock Bentley Bentayga Sensor Link Limitations

Factory 4V1 Bentayga models utilize fixed-length injection-molded composite links between the suspension control arms and the electronic potentiometer ride height sensors. These non-adjustable OEM plastic arms lock the air suspension into a conservative factory height that elevates the vehicle's center of gravity. Over sustained use, thermal cycling and road grit degrade the unsealed plastic ball sockets, leading to mechanical play that causes erratic sensor voltage inputs and unpredictable leveling behavior.

The Engineering Solution

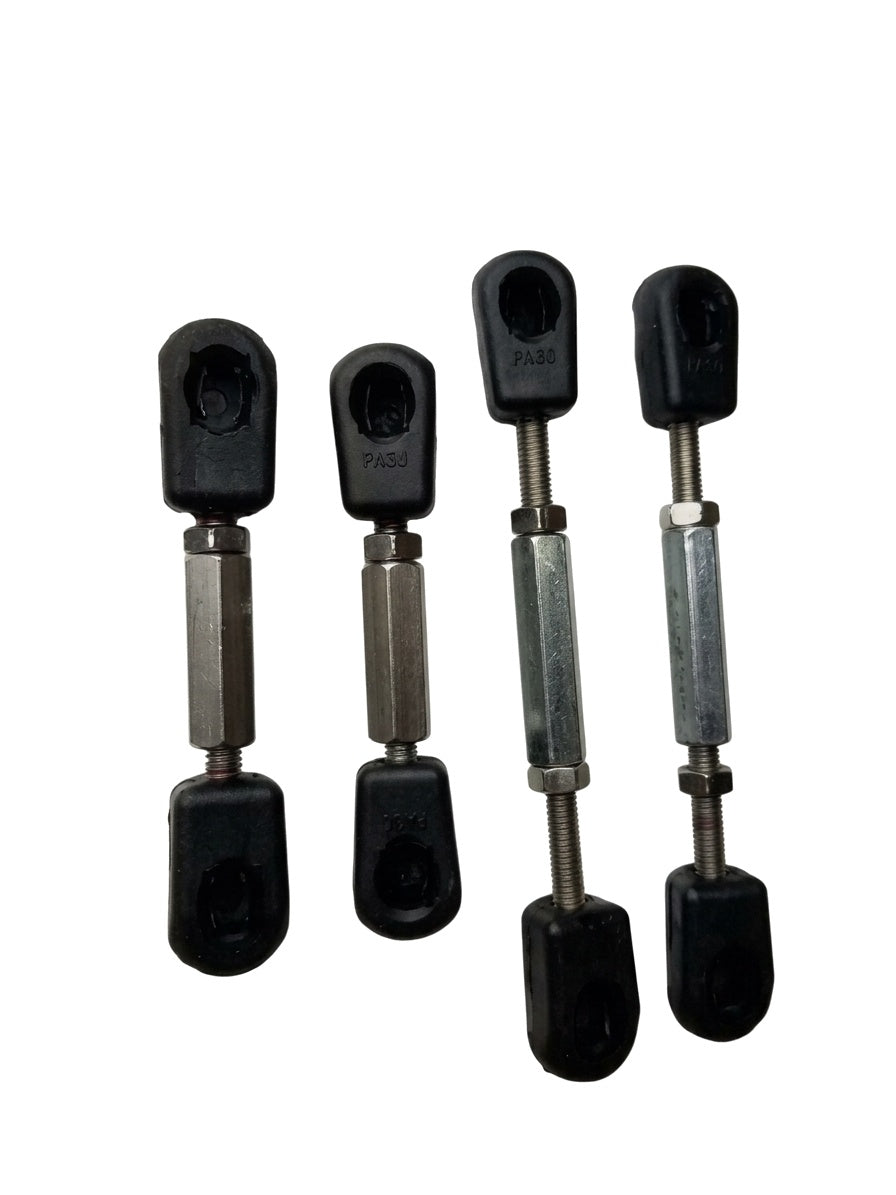

These upgraded links utilize heavy-duty metal threaded turnbuckles paired with zinc-plated, pre-lubricated ball-joint ends. Integrated internal spring retention clips lock the joints onto the sensor pivot points to seal out road grime, gravel, and moisture. By mechanically adjusting the overall link length, you modify the sensor's sweep angle, prompting the factory suspension management module to lower the ride height to your exact specification while retaining factory dampening curves and driving modes.

What's Included

• Fully adjustable metal lowering link module kit
• Locking pre-lubricated ball-joint ends
• Internal spring clips for dirt-resistant retention

Technical Specifications

Compatibility

• 2016-2024 Bentley Bentayga (All trims equipped with factory air suspension)
• Note: Distinct from wheel-spacer hardware; verify OEM air suspension equipped prior to install.

Frequently Asked Questions & Fitment Warnings

Does this fit the 4V1 Bentayga?

Yes, this is a direct fit for the 2016-2024 Bentley Bentayga equipped with the EA825 or WR12 engine and factory air suspension. This kit will not fit models equipped with standard steel coil springs.

Is ECU reprogramming or scan tool calibration required after installation?

No software flashing or electronic adaptation is required, as ride-height variation is achieved purely through mechanical sensor repositioning.

The Bentley Standard

Engineered to complement high-caliber European grand tourers, these links preserve active damping functionality and sensor fidelity, ensuring zero check-engine or suspension-fault warnings under hard cornering.
