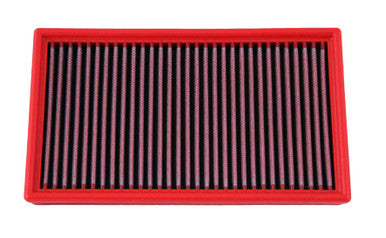

Performance Air Filter Panel Replacement 182mm x 307mm

The panel/cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

Air flow chart for a sample BMC air filter against an OEM paper filter

Temperature 25C° - Humidity 25% - Pressure 1020mbar

Test ran with oem airbox, and the related air flow constrictions.

This chart has a pure illustrative purpose and does not refer to the present filter.

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

Other Part Numbers:
BMC Air Filters #bmcFB112/01

• AUDI

  100 (4A, C4) 2.0	HP 100	YEAR 90 > 94	CHASSIS 4A, C4	ENGINE CODE AAE
  100 (4A, C4) 2.0	HP 115	YEAR 90 > 94	CHASSIS 4A, C4	ENGINE CODE AAD, ABK
  100 (4A, C4) 2.0 E 16V	HP 137	YEAR 92 > 94	CHASSIS 4A, C4	ENGINE CODE ACE
  100 (4A, C4) 2.2 TURBO (S4)	HP 230	YEAR 91 > 94	CHASSIS 4A, C4	ENGINE CODE AAN
  100 (4A, C4) 2.3 E	HP 133	YEAR 90 > 94	CHASSIS 4A, C4	ENGINE CODE AAR
  100 (4A, C4) 2.4 D	HP 82	YEAR 90 > 94	CHASSIS 4A, C4	ENGINE CODE AAS
  100 (4A, C4) 2.5 TDI	HP 115	YEAR 90 > 94	CHASSIS 4A, C4	ENGINE CODE AAT, ABP
  100 (4A, C4) 2.6 V6	HP 139	YEAR 93 > 94	CHASSIS 4A, C4	ENGINE CODE ACZ
  100 (4A, C4) 2.6 V6	HP 150	YEAR 92 > 94	CHASSIS 4A, C4	ENGINE CODE ABC
  100 (4A, C4) 2.8 V6	HP 174	YEAR 90 > 94	CHASSIS 4A, C4	ENGINE CODE AAH
  200 (43, 44) 2.3 TURBO	HP 220	YEAR 89 > 90	CHASSIS 44	ENGINE CODE 3B
  4000 1.6 D		YEAR 82 > 83
  4000 1.8		YEAR 85 > 87
  4000 2.2		YEAR 84 > 86
  4000 2.2 QUATTRO		YEAR 84 > 87
  5000 2.0 D		YEAR 80 > 82
  80 (89/8C, B3+B4) 1.6 E	HP 101	YEAR 93 > 96	CHASSIS 8C	ENGINE CODE ADA
  80 (89/8C, B3+B4) 1.9 D	HP 68	YEAR 89 > 91	CHASSIS 89, 89Q, 8A	ENGINE CODE 1Y
  80 (89/8C, B3+B4) 1.9 TD	HP 75	YEAR 91 > 94	CHASSIS 8C	ENGINE CODE AAZ
  80 (89/8C, B3+B4) 1.9 TDI	HP 90	YEAR 91 > 96	CHASSIS 8C	ENGINE CODE 1Z
  80 (89/8C, B3+B4) 2.0 E	HP 115	YEAR 91 > 96	CHASSIS 8C	ENGINE CODE ABK, ADW
  80 (89/8C, B3+B4) 2.2 TURBO	HP 230	YEAR 93 > 95	CHASSIS S2	ENGINE CODE ABY
  80 (89/8C, B3+B4) 2.2 TURBO	HP 316	YEAR 94 > 95	CHASSIS RS2	ENGINE CODE ADU
  80 (89/8C, B3+B4) 2.6 E	HP 150	YEAR 92 > 96	CHASSIS 8C	ENGINE CODE ABC
  80 (89/8C, B3+B4) 2.8 E	HP 174	YEAR 91 > 96	CHASSIS 8C	ENGINE CODE AAH
  90 / COUPÉ (89, 89Q, 8A, 8B, B3) 2.6 / QUATTRO	HP 150	YEAR 92 > 96	CHASSIS 89, 8B	ENGINE CODE ABC
  90 / COUPÉ (89, 89Q, 8A, 8B, B3) 2.8 I E V6	HP 174	YEAR 91 > 96	CHASSIS 89, 8B	ENGINE CODE AAH
  90 II (B3) 2.0	HP 115	YEAR 88 >97	CHASSIS 89, 89Q, 8A	ENGINE CODE ABK,PS, AAD, 3A
  90 II (B3) 2.2 TURBO (S2)	HP 220	YEAR 90 > 92	CHASSIS 89, 89Q, 8A	ENGINE CODE 3B
  90 II (B3) 2.2 TURBO (S2)	HP 230	YEAR 92 > 97	CHASSIS 89, 89Q, 8A	ENGINE CODE ABY
  90 II (B3) 2.6 V6	HP 150	YEAR 92 > 97		ENGINE CODE ABC
  90 II (B3) 2.8 V6	HP 174	YEAR 91 > 97		ENGINE CODE AAH
  A6 (4A/C4) 1.8 20 V	HP 125	YEAR 95 > 97		ENGINE CODE ADR
  A6 (4A/C4) 1.9 TDI	HP 90	YEAR 94 > 97		ENGINE CODE 1Z
  A6 (4A/C4) 2.0	HP 101	YEAR 94 > 97		ENGINE CODE AAE
  A6 (4A/C4) 2.0	HP 116	YEAR 94 > 97		ENGINE CODE ABK
  A6 (4A/C4) 2.0 16V	HP 140	YEAR 94 > 97		ENGINE CODE ACE
  A6 (4A/C4) 2.2 TURBO (S6)	HP 230	YEAR 94 > 97	CHASSIS 4A	ENGINE CODE AAN
  A6 (4A/C4) 2.3	HP 133	YEAR 94 > 95		ENGINE CODE AAR
  A6 (4A/C4) 2.6 V6	HP 139	YEAR 94 > 97		ENGINE CODE ACZ
  A6 (4A/C4) 2.6 V6	HP 150	YEAR 94 > 97		ENGINE CODE ABC
  A6 (4A/C4) 2.8 V6	HP 174	YEAR 94 > 97		ENGINE CODE AAH
  A6 (4A/C4) 2.8 V6 30V	HP 193	YEAR 95 > 97		ENGINE CODE ACK, ALG, AMX, APR, AQD
  CABRIOLET (8G, B4) 2.0 E	HP 115	YEAR 93 > 98	CHASSIS 8G7	ENGINE CODE ABK
  CABRIOLET (8G, B4) 2.6	HP 150	YEAR 93 > 00	CHASSIS 8G7	ENGINE CODE ABC
  CABRIOLET (8G, B4) 2.8	HP 174	YEAR 92 > 00	CHASSIS 8G7	ENGINE CODE AAH
  RS2 2.2 TURBO	HP 315	YEAR 94 > 95	CHASSIS 8C	ENGINE CODE ADU
  S2 2.2 TURBO	HP 230	YEAR 93 > 95	CHASSIS 8C	ENGINE CODE ABI

• DAIMLER

  SIX (X300) 4.0 V8	HP 284	YEAR 97 > 02
  SUPER (X300) 4.0 V8	HP 363	YEAR 97 > 03

• DODGE

  MONACO 3.0 V6

  YEAR 90

• EAGLE

  PREMIER 2.5		YEAR 88 > 89
  PREMIER 3.0 V6		YEAR 89 > 92

• FIAT

  124 2.0		YEAR 80 > 87
  131 2.0		YEAR 78 > 84
  132 2.0		YEAR 80 > 82
  132 2.0 D		YEAR 78 > 82
  132 2.5 D		YEAR 78 > 82
  ARGENTA (132A) 2.0	HP 122	YEAR 81 > 86		ENGINE CODE 132 C3.000
  REGATA (138) 1.7 D		YEAR 83 > 89
  REGATA (138) 1.9 D		YEAR 86 > 87
  REGATA (138) 2.0 D		YEAR 86 > 89
  RITMO (138A) 1.7 D		YEAR 85 > 87

• JAGUAR

  XJ/XJR (X300/X308) 3.2 V8	HP 237	YEAR 97 > 03
  XJ/XJR (X300/X308) 4.0 V8	HP 284	YEAR 97 > 03
  XJ/XJR (X300/X308) 4.0 V8 R	HP 363	YEAR 97 > 03
  XK / XKR (X150) 4.2 V8 R	HP 426	YEAR 06 > 14
  XK8 (X100) 4.0 V8	HP 294	YEAR 96 > 02
  XK8 (X100) 4.0 V8 R	HP 363	YEAR 98 > 02
  XK8 (X100) 4.0 V8 R	HP 375	YEAR 98 > 05
  XK8 (X100) 4.2 V8	HP 298	YEAR 02 > 05
  XK8 (X100) 4.2 V8 R	HP 396	YEAR 02 > 05

• PORSCHE

  924 2.5 L4 S	HP 150	YEAR 86 > 87
  924 2.5 L4 S	HP 160	YEAR 1988
  944 2.5 L4	HP 163	YEAR 82 > 88
  944 2.5 L4 (CAT)	HP 150	YEAR 86 > 87
  944 2.5 L4 (CAT)	HP 160	YEAR 1988
  944 2.5 L4 (CAT)	HP 165	YEAR 1989
  944 2.5 L4 S	HP 190	YEAR 87 > 88

• TALBOT

  ALPINE 1.6		YEAR 76
  HORIZON 1.6		YEAR 82 > 85
  MINX 1.6		YEAR 84
  RAPIER 1.6		YEAR 84
  SOLARA 1.6		YEAR 82

• VOLKSWAGEN

  BEETLE (TYPE 1) 1.6		YEAR 75 > 79
  BEETLE (TYPE 1) 97		YEAR 1974
  CARAT 1.8 CD	HP 96	YEAR 89 > 91
  CARAT 1.8 GS	HP 96	YEAR 87 > 91
  CARAT 2.0 CD	HP 100	YEAR 89 > 91
  CORRADO 1.8 16V	HP 136	YEAR 89 > 92	CHASSIS 53I	ENGINE CODE KR
  CORRADO 1.8 I G60	HP 160	YEAR 88 > 93	CHASSIS 53I	ENGINE CODE PG
  CORRADO 2,0 16V	HP 136	YEAR 91 > 95	CHASSIS 53I	ENGINE CODE 9A
  CORRADO 2.0 I	HP 115	YEAR 93 > 95	CHASSIS 53I	ENGINE CODE 2E, ADY
  CORRADO 2.9 I VR6	HP 190	YEAR 91 > 95	CHASSIS 53I	ENGINE CODE ABV
  CORSAR 1.8 CD	HP 85	YEAR 84 > 88
  GOLF II (19E, 1G1) 1.6 TD	HP 60	YEAR 83 > 91	CHASSIS 19E, 1G1	ENGINE CODE 1V
  GOLF II (19E, 1G1) 1.6 TD	HP 80	YEAR 89 > 91	CHASSIS 19E, 1G1	ENGINE CODE RA, SB
  GOLF II (19E, 1G1) 1.8 G60	HP 160	YEAR 88 > 91	CHASSIS 19E, 1G1	ENGINE CODE H1, PG
  GOLF II (19E, 1G1) 1.8 GTI	HP 112	YEAR 87 > 91	CHASSIS 19E, 1G1	ENGINE CODE DVX, EV, PB
  GOLF II (19E, 1G1) 1.8 GTI 16V	HP 129	YEAR 89 > 91	CHASSIS 19E, 1G1	ENGINE CODE PL
  GOLF II (19E, 1G1) 1.8 GTI 16V	HP 139	YEAR 89 > 90	CHASSIS 19E, 1G1	ENGINE CODE KR
  GOLF II (19E, 1G1) 1.8 GTI KAT	HP 107	YEAR 87 > 91	CHASSIS 19E, 1G1	ENGINE CODE PF
  GOLF II (19E, 1G1) 1.8 I SYNCRO	HP 98	YEAR 88 > 91	CHASSIS 19E, 1G1	ENGINE CODE 1P
  GOLF II (19E, 1G1) 1.8 SYNCRO / SYNCRO I KAT	HP 90	YEAR 86 > 91	CHASSIS 19E, 1G1	ENGINE CODE GX
  JETTA II (19E, 1G2) 1.6 TD	HP 60	YEAR 83 > 91	CHASSIS 19E, 1G2	ENGINE CODE 1V
  JETTA II (19E, 1G2) 1.6 TD	HP 80	YEAR 89 > 91	CHASSIS 19E, 1G2	ENGINE CODE RA, SB
  JETTA II (19E, 1G2) 1.8	HP 112	YEAR 87 > 91	CHASSIS 19E, 1G1	ENGINE CODE DVX, EV, PB
  JETTA II (19E, 1G2) 1.8 16V	HP 129	YEAR 89 > 91	CHASSIS 19E, 1G1	ENGINE CODE PL
  JETTA II (19E, 1G2) 1.8 I SYNCRO	HP 98	YEAR 88 > 91	CHASSIS 19E, 1G2	ENGINE CODE 1P
  JETTA II (19E, 1G2) 1.8 KAT	HP 107	YEAR 87 > 91	CHASSIS 19E, 1G1	ENGINE CODE PF
  JETTA II (19E, 1G2) 1.8 SYNCRO / SYNCRO I KAT	HP 90	YEAR 86 > 91	CHASSIS 19E, 1G2	ENGINE CODE GX
  PASSAT (3A2/5, 35I) 1.6 I	HP 100	YEAR 84 > 96	CHASSIS 3A2, 35I	ENGINE CODE AEK, AFT
  PASSAT (3A2/5, 35I) 1.6 I	HP 72	YEAR 88 > 91	CHASSIS 3A2, 35I	ENGINE CODE 1F, EZ
  PASSAT (3A2/5, 35I) 1.6 I	HP 75	YEAR 1988	CHASSIS 3A2, 35I	ENGINE CODE ABN, EZ
  PASSAT (3A2/5, 35I) 1.6 TD	HP 80	YEAR 91 > 96	CHASSIS 3A2, 35I	ENGINE CODE RA, SB
  PASSAT (3A2/5, 35I) 1.8 16V	HP 136	YEAR 88 > 89	CHASSIS 3A2, 35I	ENGINE CODE KR
  PASSAT (3A2/5, 35I) 1.8 I	HP 107	YEAR 88 > 93	CHASSIS 3A2, 35I	ENGINE CODE PF
  PASSAT (3A2/5, 35I) 1.8 I	HP 112	YEAR 88 > 92	CHASSIS 3A2, 35I	ENGINE CODE PB
  PASSAT (3A2/5, 35I) 1.8 I	HP 75	YEAR 90 > 96	CHASSIS 3A2, 35I	ENGINE CODE AAM
  PASSAT (3A2/5, 35I) 1.8 I	HP 90	YEAR 88 > 96	CHASSIS 3A2, 35I	ENGINE CODE ABS, ADZ, RP
  PASSAT (3A2/5, 35I) 1.8 I G60	HP 160	YEAR 88 > 96	CHASSIS 3A2, 35I	ENGINE CODE PG
  PASSAT (3A2/5, 35I) 1.9 D	HP 68	YEAR 89 > 93	CHASSIS 3A2, 35I	ENGINE CODE 1Y
  PASSAT (3A2/5, 35I) 1.9 TD	HP 75	YEAR 91 > 96	CHASSIS 3A2, 35I	ENGINE CODE AAZ
  PASSAT (3A2/5, 35I) 1.9 TDI	HP 110	YEAR 1996	CHASSIS 3A2, 35I	ENGINE CODE AFN
  PASSAT (3A2/5, 35I) 1.9 TDI	HP 90	YEAR 88 > 96	CHASSIS 3A2, 35I	ENGINE CODE 1Z, AHU
  PASSAT (3A2/5, 35I) 2.0	HP 107	YEAR 95 > 96	CHASSIS 3A2, 35I	ENGINE CODE AEP
  PASSAT (3A2/5, 35I) 2.0 I / SYNCRO	HP 115	YEAR 90 > 96	CHASSIS 3A2, 35I	ENGINE CODE 2E, ADY, AGG
  PASSAT (3A2/5, 35I) 2.0 I 16V	HP 136	YEAR 88 > 93	CHASSIS 3A2, 35I	ENGINE CODE 9A
  PASSAT (3A2/5, 35I) 2.0 I 16V	HP 150	YEAR 88 > 97	CHASSIS 3A2, 35I	ENGINE CODE ABF
  PASSAT (3A2/5, 35I) 2.8 I VR6 / SYNCRO	HP 174	YEAR 91 > 96	CHASSIS 3A2, 35I	ENGINE CODE AAA
  PASSAT (3A2/5, 35I) 2.9 I VR6 SYNCRO	HP 184	YEAR 94 > 97	CHASSIS 3A2, 35I	ENGINE CODE ABV

• VOLVO

  142 2.0	HP 101	YEAR 70 > 72
  142 2.0	HP 82	YEAR 68 > 74
  144 2.0	HP 101	YEAR 70 > 72
  144 2.0	HP 82	YEAR 70 > 74
  145 2.0		YEAR 68 > 74
  145 2.0	HP 100	YEAR 72 > 74
  145 2.0	HP 101	YEAR 72 > 74
  145 2.0	HP 82	YEAR 72 > 74
  163 3.0		YEAR 68 > 73
