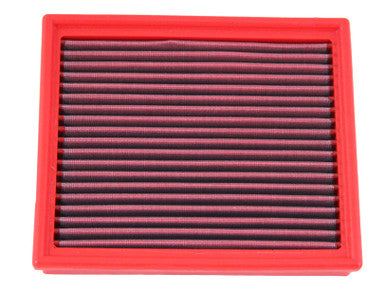

Performance Air Filter Panel for Mercedes SLK and Volvo

The panel / cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

Air flow chart for a sample BMC air filter against an OEM paper filter
Temperature 25C° - Humidity 25% - Pressure 1020mbar
Test ran with oem airbox, and the related air flow constrictions.
This chart has a pure illustrative purpose and does not refer to the present filter.

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

• FORD

  FOCUS II 2.5 ST	HP 225	YEAR 05 >
  KUGA I 2.5 T	HP 200	YEAR 08 >
  MONDEO IV 2.5	HP 220	YEAR 07 > 10
  S-MAX 2.5 ST	HP 220	YEAR 06 > 10

• MERCEDES

  SLK (R170) SLK 200	HP 136	YEAR 96 > 00	CHASSIS R170.435	ENGINE CODE M 111.946
  SLK (R170) SLK 200 KOMPRESSOR	HP 163	YEAR 00 > 04	CHASSIS R170.444	ENGINE CODE M 111.958
  SLK (R170) SLK 200 KOMPRESSOR	HP 192	YEAR 96 > 00	CHASSIS R170.445	ENGINE CODE M 111.943
  SLK (R170) SLK 230 KOMPRESSOR	HP 193	YEAR 96 > 00	CHASSIS R170.447	ENGINE CODE M 111.973
  SLK (R170) SLK 230 KOMPRESSOR	HP 197	YEAR 00 > 04	CHASSIS R170.449	ENGINE CODE M 111.983

• VOLVO

  C 30 2.4	HP 170	YEAR 06 > 10		ENGINE CODE B 5254T3
  C 30 2.5 T5	HP 220	YEAR 06 > 08		ENGINE CODE B 5244T3
  C 30 2.5 T5	HP 230	YEAR 07 >		ENGINE CODE B 5254T7
  C 70 II 2.4	HP 140	YEAR 06 >		ENGINE CODE B 5244S5
  C 70 II 2.4	HP 170	YEAR 06 >		ENGINE CODE B 5244S4
  C 70 II 2.5 T5	HP 220	YEAR 06 >		ENGINE CODE B 5254T3
  C 70 II 2.5 T5	HP 230	YEAR 07 >		ENGINE CODE B 5254T7
  S 40 II 2.4	HP 140	YEAR 04 > 09		ENGINE CODE B 5244S5
  S 40 II 2.4	HP 170	YEAR 04 > 09		ENGINE CODE B 5244S4
  S 40 II 2.5 T5	HP 220	YEAR 04 >		ENGINE CODE B 5254T3
  S 40 II 2.5 T5	HP 230	YEAR 04 >		ENGINE CODE D 5244T7
  S 60 II / V 60 / CROSS COUNTRY 2.0	HP 179	YEAR 13 >		ENGINE CODE B 5204T8
  S 60 II / V 60 / CROSS COUNTRY 2.0 BIFUEL	HP 254	YEAR 15 >		ENGINE CODE B 5254T14, B5254T12
  S 60 II / V 60 / CROSS COUNTRY 2.5 T5	HP 254	YEAR 15 >		ENGINE CODE B 5254T14, B5254T12
  S 80 II 2.5 T	HP 200	YEAR 06 > 09		ENGINE CODE B 5254T6, B 5254T8
  S 80 II 2.5 T	HP 231	YEAR 10 >		ENGINE CODE B 5254T10, B 5254T11
  S 80 II 2.5 T5	HP 249	YEAR 12 >		ENGINE CODE B 5254T14, B5254T12
  V 40 II / CROSS COUNTRY 2.0 T4	HP 180	YEAR 12 >		ENGINE CODE B 5204T8
  V 40 II / CROSS COUNTRY 2.0 T5	HP 213	YEAR 12 >		ENGINE CODE B 5204T9
  V 40 II / CROSS COUNTRY 2.5 T5	HP 249	YEAR 14 >		ENGINE CODE B 5254T14
  V 40 II / CROSS COUNTRY 2.5 T5	HP 254	YEAR 12 >		ENGINE CODE B 5254T12
  V 50 2.4	HP 140	YEAR 04 >		ENGINE CODE B 5244S5
  V 50 2.4	HP 170	YEAR 04 >		ENGINE CODE B 5244S
  V 50 2.5 T5	HP 220	YEAR 04 >		ENGINE CODE B 5244T3
  V 50 2.5 T5	HP 230	YEAR 07 >		ENGINE CODE D 5244T7
  V 70 II 2.0	HP 213	YEAR 13 >		ENGINE CODE B 5204T9
  V 70 II 2.0 BIFUEL	HP 213	YEAR 13 >
  V 70 II 2.5 T	HP 200	YEAR 07 > 09		ENGINE CODE B 52454T6
  V 70 II 2.5 T	HP 231	YEAR 09 >		ENGINE CODE B 5254T10, B 5254T11
  XC 60 2.5 T5	HP 254	YEAR 14 >		ENGINE CODE B 5254T12
